Arm, Boom, Bucket Cylinder and Seal Kit
Arm, Boom, Bucket Cylinder Seal Kits for an excavator, dozer, crawler drill, rock drilling rig, etc.... For Rexroth, Kawasaki, Uchida, Hydromatic, Shibaura, Deijin, Seiki, Linde, Kayaba, Liebherp, Caterpillar, Hhitachi, Komatsu, Mitsubishi, Daikin, Sauer, Sundustrand, etc....
pin_drop
Our Office Location
Paju-City, Seoul
Republic of Korea
phone
Call us Directly
+82 (707) 858 2730 ~ 31
Mon - Fri, 8:30am - 5:30pm
Sat, 9:00am - 12:00pm
business_center
Company Details
ERG Korea Inc.
Office Locations

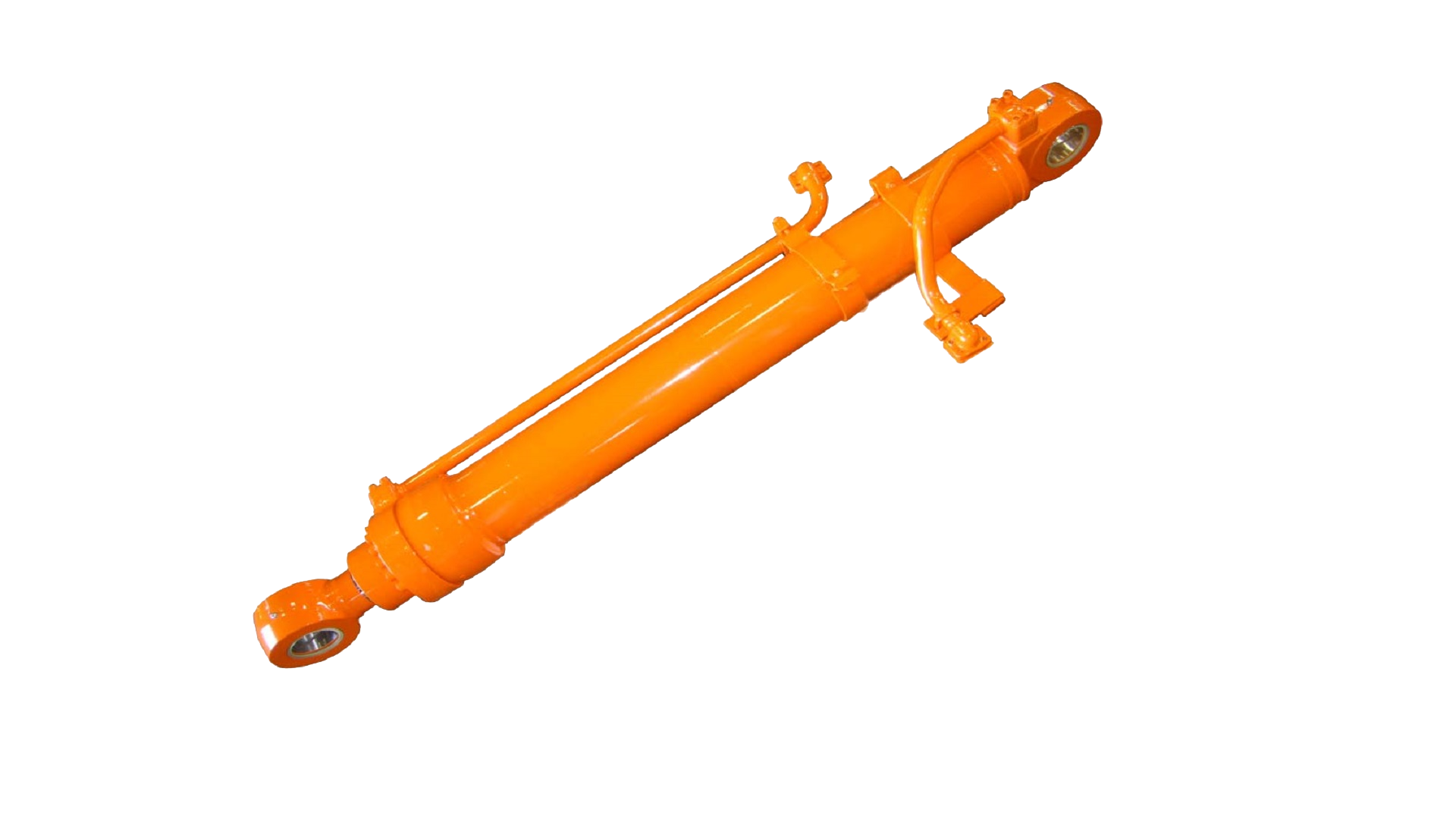

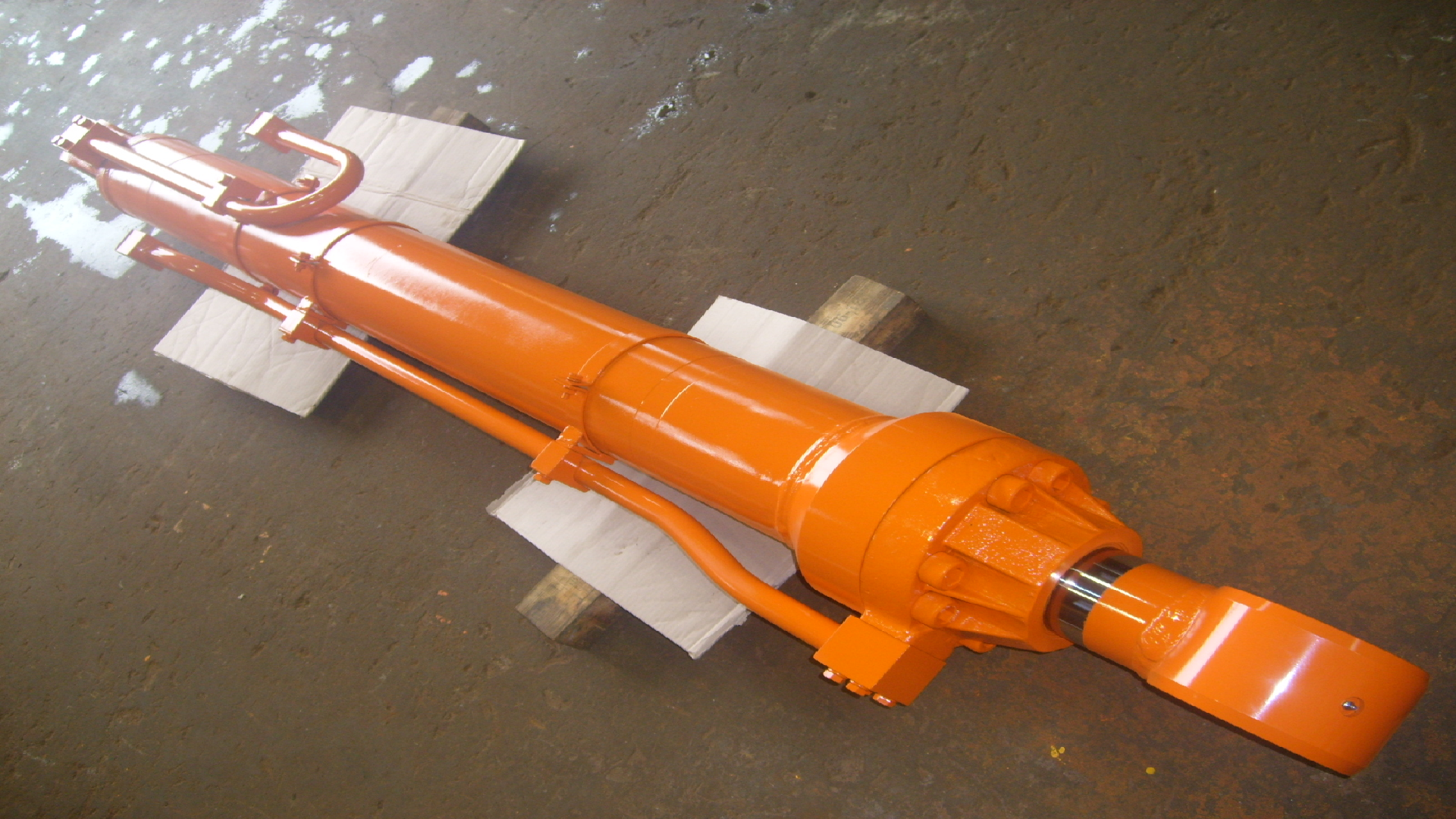

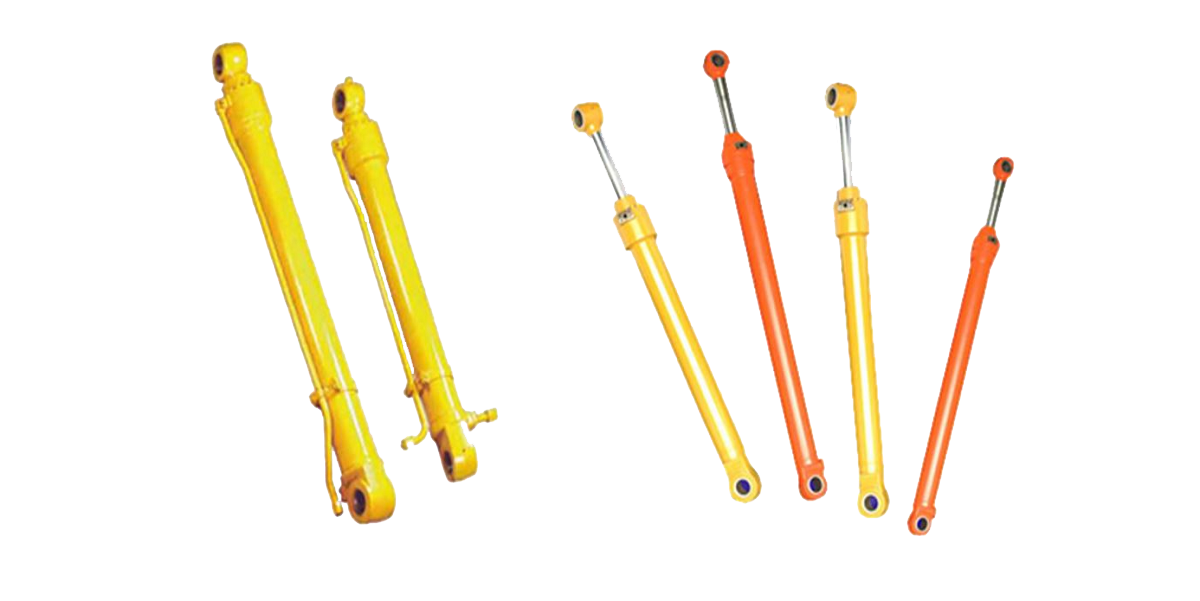

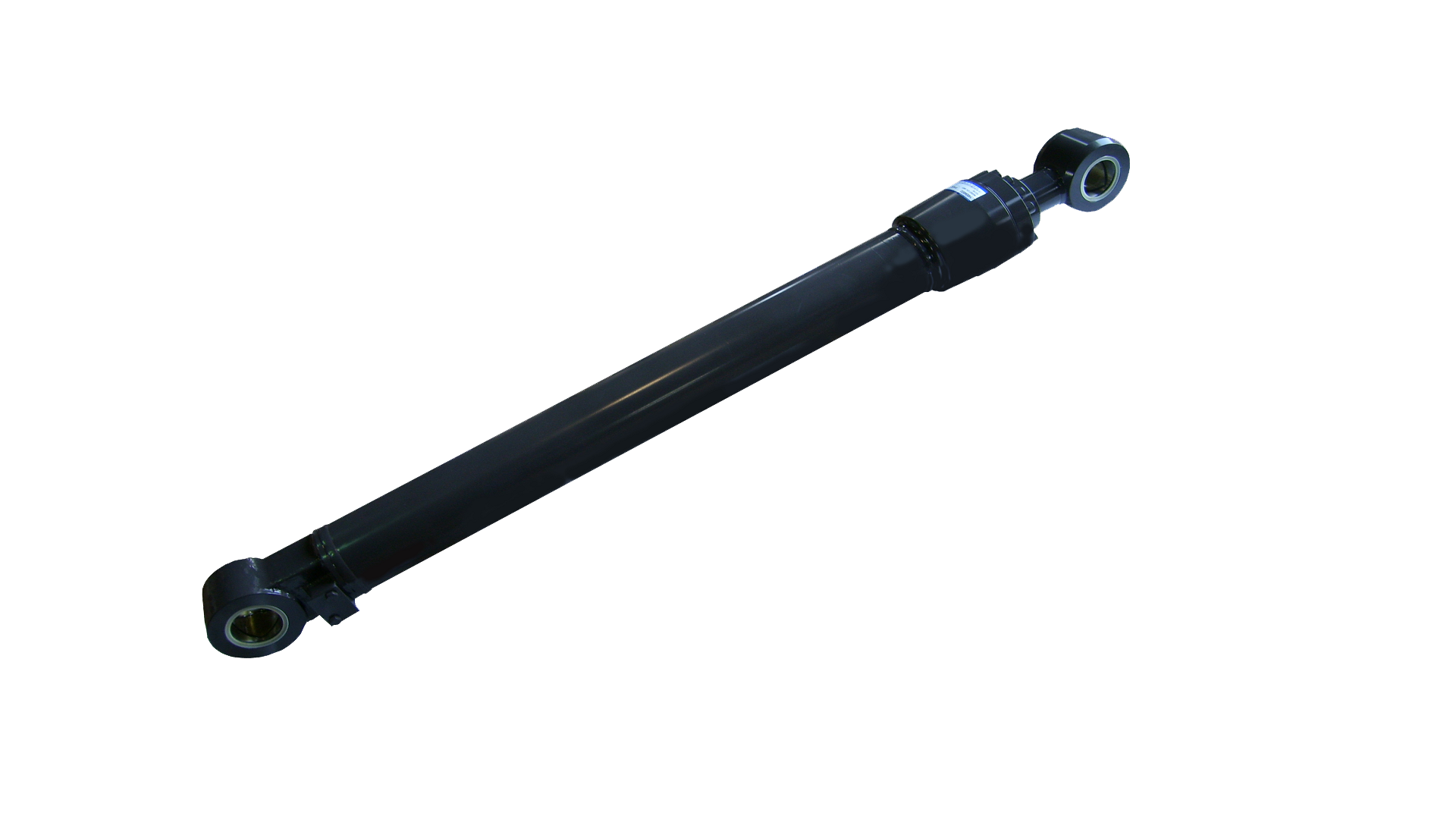

Arm, Boom, Bucket Cylinder Assy
Model |
Part No | Weight(KG) | Remarks |
| S140-5 | 2440-9230B | 104 | BOOM - LH |
| S225-V | 440-00355A | 167 | BOOM - LH |
| S290-V | 2440-9238B | 255 | BOOM - LH |
| S300-V | 440-00416B | 251 | BOOM - LH |
| S340-V | 2440-9279E | 281 | BOOM - LH |
| S420-V | 2440-9296C | 423 | BOOM - LH |
| S470-V | 440-00287A | 403 | BOOM - LH |
| DX140LC | K1026249 | 128 | BOOM - LH |
| DX225LC | 400309-00341 | 179.5 | BOOM - LH |
| DX300 | 440-00430A | 251 | BOOM - LH |
| DX340 | 400309-00084 | 313 | BOOM - LH |
| DX420 | K1003432 | 320 | BOOM - LH |
| DX480 | K1001341A | 402 | BOOM - LH |
| S140-5 | 2440-9231B | 157 | BOOM - RH |
| S225-V | 440-00356A | 166 | BOOM - RH |
| S290-V | 2440-9239B | 250.5 | BOOM - RH |
| S300-V | 440-00417B | 251 | BOOM - RH |
| S340-V | 2440-9278E | 281 | BOOM - RH |
| S420-V | 2440-9295C | 366 | BOOM - RH |
| S470-V | 440-00286A | 405 | BOOM - RH |
| DX140LC | K1026250 | 128 | BOOM - RH |
| DX225LC | 400309-00343 | 179.5 | BOOM - RH |
| DX300 | 440-00431A | 252 | BOOM - RH |
| DX340 | 400309-00085 | 400 | BOOM - RH |
| DX420 | K1003433 | 365 | BOOM - RH |
| DX480 | K1001340A | 402 | BOOM - RH |
| S140-5 | 440-00398A | 89 | BUCKET |
| S225-V | 440-00059A | 154 | BUCKET |
| S290-V | 400310-00065 | 240 | BUCKET |
| S300-V | 400310-00065 | 240 | BUCKET |
| S340-V | 400310-00025 | 270 | BUCKET |
| S420-V | 2440-9294H | 341 | BUCKET |
| S470-V | 440-00016E | 386 | BUCKET |
| DX140LC | 440-00411C | 107 | BUCKET |
| DX225LC | K1000884B | 187 | BUCKET |
| DX300 | 440-00433B | 218 | BUCKET |
| DX340 | 400310-00054 | 358 | BUCKET |
| DX420 | K1003483C | 341 | BUCKET |
| DX480 | K1014381A | 573 | BUCKET |
| S140-5 | 2440-9249A | 122 | ARM |
| S225-V | 2440-9236B | 244 | ARM |
| S290-V | 2440-9240G | 329 | ARM |
| S300-V | 400305-00064 | 331 | ARM |
| S340-V | 400305-00032 | 240 | ARM |
| S420-V | 440-00292A | 531 | ARM |
| S470-V | 440-00015B | 612 | ARM |
| DX140LC | K1024800A | 137 | ARM |
| DX225LC | K1044991A | 175 | ARM |
| DX300 | 440-00432E | 328 | ARM |
| DX340 | K1006192B | 680 | ARM |
| DX420 | K1003434E | 525 | ARM |
| DX480 | K1001344A | 627 | ARM |
| DX480 | K1001344A | 627 | ARM |
| R210LC-7 | 31N6-50121 | 160 | BOOM - LH |
| R250LC-7 | 31N7-50120 | 290 | BOOM - LH |
| R290LC7 | 31N8-50121 | 270 | BOOM - LH |
| R305LC-7 | 31N8-50121 | 270 | BOOM - LH |
| R320LC-7 | 31N9-50121 | 320 | BOOM - LH |
| R360LC-7 | 31NA-50121 | 350 | BOOM - LH |
| R360LC-7A | 31NA-50113 | 350 | BOOM - LH |
| R450LC-7 | 31NB-50220 | 400 | BOOM - LH |
| R500LC-7 | 33NB-50220 | 420 | BOOM - LH |
| R800LC7A | 31ND-50010 | 730 | BOOM - LH |
| R210LC-7 | 31N6-50111 | 160 | BOOM - RH |
| R250LC-7 | 31N7-50110 | 290 | BOOM - RH |
| R290LC7 | 31N8-50111 | 270 | BOOM - RH |
| R305LC-7 | 31N8-50111 | 270 | BOOM - RH |
| R320LC-7 | 31N9-50111 | 320 | BOOM - RH |
| R360LC-7 | 31NA-50111 | 350 | BOOM - RH |
| R360LC-7A | 31NA-50112 | 350 | BOOM - RH |
| R450LC-7 | 31NB-50230 | 400 | BOOM - RH |
| R500LC-7 | 33NB-50230 | 420 | BOOM - RH |
| R800LC7A | 31ND-50020 | 730 | BOOM - RH |
| R210LC-7 | 31N6-60110 | 160 | BUCKET |
| R250LC-7 | 31N7-60110 | 230 | BUCKET |
| R290LC7 | 31N8-60110 | 230 | BUCKET |
| R305LC-7 | 31N8-60110 | 230 | BUCKET |
| R320LC-7 | 31N9-60110 | 270 | BUCKET |
| R360LC-7 | 31NA-60110 | 340 | BUCKET |
| R360LC-7A | 31NA-60111 | 340 | BUCKET |
| R450LC-7 | 31NB-60131 | 340 | BUCKET |
| R500LC-7 | 33NB-60130 | 390 | BUCKET |
| R800LC7A | 31ND-60010 | 620 | BUCKET |
| R210LC-7 | 31N6-50130 | 270 | ARM |
| R250LC-7 | 31N7-50131 | 420 | ARM |
| R290LC7 | 31N8-50130 | 380 | ARM |
| R305LC-7 | 31N8-50130 | 380 | ARM |
| R320LC-7 | 31N9-50130 | 380 | ARM |
| R360LC-7 | 31NA-50130 | 480 | ARM |
| R360LC-7A | 31NA-50132 | 480 | ARM |
| R450LC-7 | 31NB-50240 | 540 | ARM |
| R500LC-7 | 33NB-50240 | 570 | ARM |
| R800LC7A | 31ND-50030 | 960 | ARM |
| EC140B | 14564035 | 111 | BOOM - LH |
| EC210B | 14563968 | 176 | BOOM - LH |
| EC290B | 14563840 | 253 | BOOM - LH |
| EC360B | 14563810 | 316 | BOOM - LH |
| EC460B | 14556580 | 380 | BOOM - LH |
| EC140B | 14564035 | 111 | BOOM - RH |
| EC210B | 14563968 | 176 | BOOM - RH |
| EC290B | 14563840 | 253 | BOOM - RH |
| EC360B | 14563810 | 316 | BOOM - RH |
| EC460B | 14556580 | 380 | BOOM - RH |
| EC140B | 14564132 | 96 | BUCKET |
| EC210B | 14563986 | 157 | BUCKET |
| EC290B | 14563892 | 220 | BUCKET |
| EC360B | 14640433 | 254 | BUCKET |
| EC460B | 14640430 | 341 | BUCKET |
| EC140B | 14563395 | 151 | ARM |
| EC210B | 14563977 | 250 | ARM |
| EC290B | 14563849 | 315 | ARM |
| EC360B | 14640432 | 438 | ARM |
| EC460B | 14606236 | 560 | ARM |
Arm, Boom, Bucket Seal Kit
Model |
Item Description | Part No | Remarks |
| PC100-1 | ARM | PC100(1/2)-2 | |
| BOOM | PC100(1/2)-1 | ||
| BUCKET | PC100(1/2)-3 | ||
| PC100-2 | ARM | PC100(1/2)-2 | |
| BOOM | PC100(1/2)-1 | ||
| BUCKET | PC100(1/2)-3 | ||
| PC100-3(OLD) | ARM | 707-98-38600 | |
| BOOM | 707-98-36100 | ||
| BUCKET | 707-98-36110 | ||
| PC100-3(NEW) | ARM | 707-98-38600 | |
| BOOM | 707-99-36200 | ||
| BUCKET | 707-99-36210 | ||
| PC100-5 / PC100-6 | ARM | 707-99-44200 | |
| BOOM | 707-98-36200 | ||
| BUCKET | 707-98-27600 | ||
| PC200-1 | ARM | PC200(1)-2 | |
| BOOM | PC200(1)-1 | ||
| BUCKET | PC200(1)-3 | ||
| PC200-2 | ARM | PC200(2)-2 | |
| BOOM | PC200(2)-1 | ||
| BUCKET | PC200(2)-3 | ||
| PC200-3(OLD) | ARM | 707-98-48600 | |
| BOOM | 707-98-46200 | ||
| BUCKET | 707-98-38500 | ||
| PC200-3(NEW) | ARM | 707-99-48610 | |
| BOOM | 707-98-46270 | ||
| BUCKET | 707-98-38500 | ||
| PC200-5 / PC200-6 | ARM | 707-99-57200 | |
| BOOM | 707-99-46600 | ||
| BUCKET | 707-98-45220 | ||
| PC200-7 | ARM | 707-99-57160 | |
| BOOM | 707-99-46130 | ||
| BUCKET | 707-99-45230 | ||
| PC300-1 / PC300-2 | ARM | PC300(1/2)-2 | |
| BOOM | PC300(1/2)-1 | ||
| BUCKET | PC300(1/2)-3 | ||
| PC300-3 | ARM | 707-98-67100 | |
| BOOM | 707-98-58200 | ||
| BUCKET | 707-98-58210 | ||
| PC300-5 / PC300-6 | ARM | 707-99-67110 | |
| BOOM | 707-99-58210 | ||
| BUCKET | 707-99-58110 | ||
| PC300-7 | ARM | 707-99-67090 | |
| BOOM | 707-99-58080 | ||
| BUCKET | 707-99-58090 | ||
| CAT320 | ARM | 413668 | |
| BOOM | 413665 | ||
| BUCKET | 413665 | ||
| CAT325 | ARM | ||
| BOOM | |||
| BUCKET | |||
| CAT330 | ARM | ||
| BOOM | |||
| BUCKET | |||
| R140W-7 | ARM | 31Y1-18110 | |
| BOOM | 31Y1-18170 | ||
| BUCKET | 31Y1-18210 | ||
| R250LC-7 | ARM | 31Y1-18250 | |
| BOOM | 31Y1-09990 | ||
| BUCKET | 31Y1-10160 | ||
| R305LC-7 | ARM | 31Y1-15045 | |
| BOOM | 31Y1-15395 | ||
| BUCKET | 31Y1-15545 | ||
| R320LC-7 | ARM | 31Y1-19080 | |
| BOOM | 31Y1-19070 | ||
| BUCKET | 31Y1-19090 | ||
| R360LC-7 | ARM | 31Y1-18480 | |
| BOOM | 31Y1-20910 | ||
| BUCKET | 31Y1-18490 | ||
| R450LC-7 | ARM | 31Y1-18420 | |
| BOOM | 31Y1-18411 | ||
| BUCKET | 31Y1-18430 | ||
| R500LC-7 | ARM | 31Y1-26410 | |
| BOOM | 31Y1-26580 | ||
| BUCKET | 31Y1-26760 | ||
| S320LC / S330LC-3 | ARM | 2440-9416AKT | |
| BOOM | 2440-9413AKT | ||
| BUCKET | 2440-9415AKT | ||
| S220LC-V | ARM | 2440-9236KT | |
| BOOM | 2440-9234KT | ||
| BUCKET | 2440-9339KT | ||
| S280LC | ARM | 2440-6122KT | |
| BOOM | 2440-6120KT | ||
| BUCKET | 2440-6123KT | ||
| S290LC-V / S300LC-V | ARM | 2440-9240KT | |
| BOOM | 2440-9238KT | ||
| BUCKET | 2440-9241KT | ||
| S330LC-V / S360LC-V | ARM | 2440-9280CKT | |
| BOOM | 2440-9281AKT | ||
| BUCKET | 2440-9281AKT | ||
| MX295LS / EC290 | ARM | 14589835 | |
| BOOM | 14589670 | ||
| BUCKET | 14589665 | ||
| MX365LS / EC360 | ARM | 14589841 | |
| BOOM | 14589842 | ||
| BUCKET | 14589840 | ||
| MX255LS / EC240 | ARM | 14589833 | |
| BOOM | 14589828 | ||
| BUCKET | 14589831 | ||
| MX132LC | ARM | 14589661 | |
| BOOM | 14589807 | ||
| BUCKET | 14589808 | ||
| MX132W | ARM | 14589656 | |
| BOOM | 14589810 | ||
| BUCKET | 14589810 |
As you can see the list above the parts numbers are different between Old and New type of excavator. But the model name is same. So you should check the part number and let us know it then you will get some more details with price.
| Model | Item Description |
Part No | Remarks |
| Doosan Daewoo |
DH028, DH05W, DH07W, DH08, DH10 | ||
| S010, S035, S50/5, S130/2/3/5, S170, | |||
| S200, S220/2/3/5, S280, S320, | |||
| S330-3, S360-3, S400-3/5, S450-3, | |||
| S50W3, S70W3, S80W3, S120W, S130W3/5, S200W3/5 | |||
| Samsung Volvo |
MX3LC, MX6LC-2, MX8LC/2, MX10LC/2, MX14-2 | ||
| MX452-LC, MX3W, MX6W/2, MX8W/2 | |||
| SE245, SE130LC, SE210LC, SE292LC, SE352LC, SE452LC | |||
| Hyundai | HX60W/2, HX80W/2, HX100 | ||
| R450, R500, R1300LC/2/3, R2000LC/2/3 | |||
| R2800KLC, R2900-3, R3200LC3, R3600LC3 | |||
| R4200/4500, R4500-3 | |||
| Komatsu | PC60, PC70, PC120, PC130, PC150 | ||
| PC200, PC220, PC280, PC230, PC300, PC310 | |||
| PC380, PC400, PC410, PC450 | |||
| PC650, PC1000, PC1500, PC1600 | |||
| Hitachi | UH02, UH025, UH031, UH04, UH045, UH07 | ||
| UH081, UH083, UH069, UH10, UH121, UH122, UH12, UH14, UH16 | |||
| EX60, EX62, EX100, EX120, EX130, EX150 | |||
| EX220, EX270, EX300, EX400, EX700, EX1000, EX1800 | |||
| Mitsubishi / CAT |
MS030, MS035, MS055, MS062, MS070, MS110 | ||
| MS120, MS180, MS230, MS280, MS580 | |||
| E70B, E120B, E200B, E240B, E300B, E320B, E450B | |||
| REGA311, REGA312, REGA313, REGA322 | |||
| REGA325, REGA330, REGA350, REGA375 | |||
| CAT320, CAT307SSR, CAT330, MIT312, MIT330B, MIT322B | |||
| Kobelco | SK014, SK027, SK032, SK042, SK03N2, SK04N2 | ||
| SK045N2, SK09N2, SK10N2, SK12N2, SK16N2, SK60 | |||
| SK100, SK120, SK200, SK300, SK310, SK400 | |||
| SK450, K903, K904, K905, K907, K909, K914, K916 | |||
| HALLA | HE360LC, HE280LC, HE220LC, HE130W, HE50W, FH300, FH400 | ||
| Kato | HD400SEV, HD450SEV, HD700SEV, HD770SEV | ||
| HD800SEV, HD850SEV, HD900SEV, HD1100 | |||
| HD1200G, HD1220SEV, HD1800 | |||
| Sumitomo | S120, S140, S160, S35BJ, S40BJ | ||
| LS280, S250, S340, S400, SH60, SH65, SH75 | |||
| SH100, SH120, SH135U, SH200, SH135U, SH200 | |||
| SH220, SH300, SH350HD, SH450HD |
The brand names such as Hyundai, Doosan, Volvo, Cat, Caterpillar, Case, John Deere, Komatsu, Hitachi, JCB, Atlac Copco, Sandvik, Tamrock, Furukawa, Toyo, Ingersoll Rand, or any others are registered trademarks of the respective original manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
