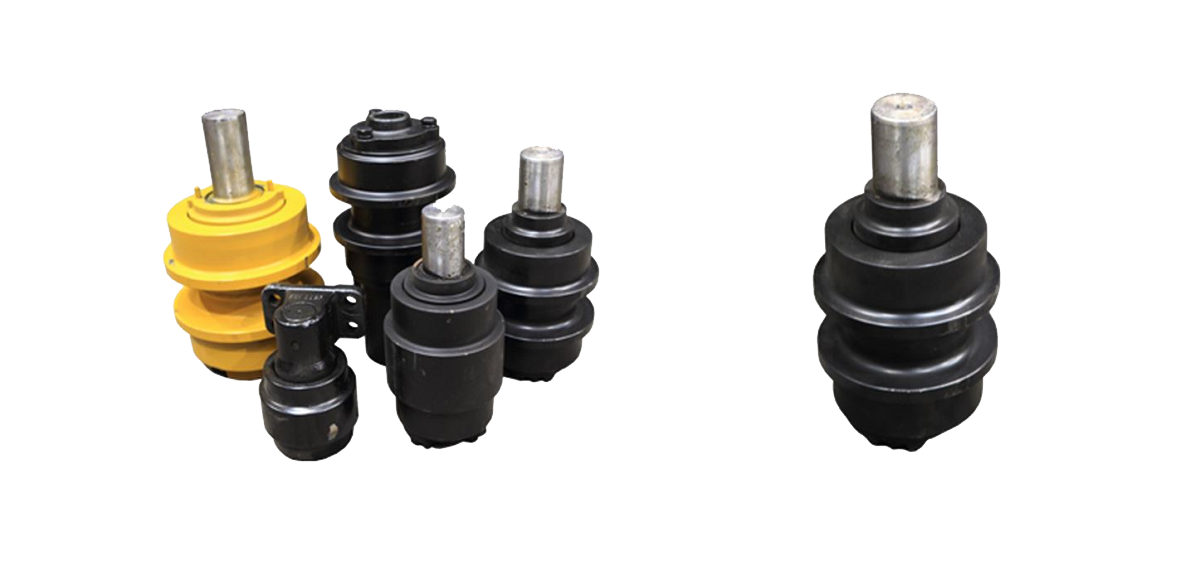

Carrier Roller and Track Roller

Model	Part No	Weight (KG)
S50, DH50, DX55	2270-1041A	10.5
S55-5	2270-1134/ 2270-1134S	9.2
S55-5 GOLD	2270-1103	15
S70-3, S70-5, S75-5	2270-6124A
S130-3/5, S170-3/5, DH120, DH130, DH170, DH150LC-7,S140, S140LC-V	2270-1062/ UH160E0G/ 200105-00012	16.5
DX140LC	K100870A
DX180LC	K1011772B
S220-3~5, S225-5, S250-5, DH180, DH200	2270-1005C/ 2270-1005E/ 2270-1005H/ UH085E0A-G/ 20	31
DX220LC, DX225LC, DX225NLC, DX255LC	270-00064A
DX225LC	K1037728
DH280, S280, S280-3, S290-5, S300-5, S320, S330-3/5, S340-5, DH320	2270-1030/ 2270-1030A/ 2270-6126/ 2270-6126A/ 2270	32
DX300LC, DX340LC	270-00047B
S340LC-7	K1039254A
S360-3/5, S400-3/5, S420-5, S450-3/5, S470-5, DH450, S500-5	2270-9402A/ UH098C0B-G	40
DX420LC, DX480LC, DX520LC	270-00061
R500, R550-3	81M5-54001	6
R55-3, R555M, R555MVP(~#791)	81M7-55000	13.2
R55-3(RUBBER TRACK), R555MVP(#792~)	81M7-55100/ 81M7-55101	11
R55-7, R555-7, R555-7K	81M8-11010	15
R130LC, R130-3, R140-7, R1300LC, R1300-3, R1400-7, R140LC-7	81E6-2003/ 81E6-20031BG	20
R160-3, R180-3, R210-3/7, R250-3/7, R1800-3, R2200-3/7, R2500-3	81EM-10030/ UH082K2B-G/ 81EM-10031GG/ UH082K2B	22.6
R200, HX80, R2000LC-2	E181-2003	20
R200, R2000LC	81E1-20030	27
HX100, R280LC	E282-2003	30
R290-3/7,R300-7,R320-3/7, R2800KLC, R2900-3/7, R3000-7, R3200LC	81E5-2003/ 81E5-20031/ 81E5-20031BG/	37
R360-3/7, R450-3/7, R500-7, R3600-3/7, R4500-3/7, R5000-7, R4200LC	81E7-00521/ 81E7-0016/ 81E7-00521BG/ 81E7-00522/ 8	45
MX3, MX3A	772124-37500/ 1081-01380	5.2
EC55, MX55	1181-00440	5.5
MX132, MX132LCM, SE130LC-2, SE130LCM-2, MX6LC, MX6LCM	1081-01670	21
EC140, SE130LC-3, MX135	1181-01100/ 14532433	21
MX8-2,SE210-2, MX222	1030-50030	21
EC210, EC240, MX225, MX255, SE210-3	1181-00020/ 14528559/ 14545571/ UH082W0B/ C9316100	20.6
MX10-2,SE280, MX292, MX10-2	1080-01030	28.5
MX295, EC290	1181-01011/ 14527126/ 14545576	29
EC360, EC460, MX352, MX452, MX14, MX16, SE350-2~5	1081-01820/ 14501643/ 14527124/ 1081-04411	33.6
SD4P	3030-01250D	14
SD6P	R33965	16
SD15P	141-30-00566	34
SD20	155-30-07232	42
HE220	43L900000	22
HE280	4412L1673000	35
HE360	703L10200	40
HE450		41
PC10/15	20N-35-71200	5.9
PC20-6/7	20N-30-71200	3.2
PC40, PC25-1(STEEL), PC75-2/3(STEEL), PC60-7(STEEL)	20T-30-00050/ 21W-30-00090	4.6
PC40-7(RUBBER), PC25-1(RUBBER), PC75-2/3(RUBBER)	20T-30-00060	6.8
PC40R-8, PC30R-8, PC35R-8	20T-30-00150	3.3
PC75UU-2	20T-30-00080	4.7
PC60-1~3	103-30-00011/ 103-30-00010/ 103-30-00131	14
PC100-1~6, PC120-1~6, PC80-1~3, PC60-6	203-30-00120/ 203-30-00150	16
PC200-1~6, PC150-1~5, PC220-1~6, PC100L-1~3, PC240-3~5	20Y-30-00022/ 20Y-30-00021/ 204-30-00020/ 205-30-0	20
PC200-7	22U-30-00020 / 22U-30-00021 / 22U-30-00022 / 20Y-3	20
PC300-1~6, PC280LC, PC300HD-3/5, PC350, PC360-1~3, PC400-1~5	207-30-00320/ 208-30-00320/ 207-30-00032/ 207-30-0	30
PC300-7 COLLAR TYPE	207-30-00430	30
PC300-7 SHAFT TYPE	207-30-00550 (W/O BRACKET)	29
PC400/ PC450-6	208-30-00340/ 208-30-00350/ 208-30-00240	40
PC450-7/ PC400-7~8	208-30-00431/ 208-30-00440	30
PC400-7~8	208-30-00520 (W/O BRACKET) / 208-30-00511 / 208-30
PC650-5	195-30-00580	71
PC650LC-6	21M-30-00200	47
PC750-7, PC800-7	209-30-00300	55
PC1000-1	21N-30-00030	75
D20A-5, D20S-5, D20P-5, D20Q-5, D20PL-5, D21(A~PL)	103-30-00011/ 103-30-00010	14
D20-6/7	103-30-00131	12
D30-(A,S,P,Q)12~15, D31(A,S,P,PL,Q)-16	111-30-00260	16
D31-(A,P,PL,PLL,S)-17, D31(E,P,Q,S)-18, D37(E,P)-1/2	113-30-00112/ 113-30-00110/ 113-30-00111	16
D31PX-21	11Y-30-00031	19
D41-6	124-30-53000	19
D40-1~5, D50-15~18, D58, D60(A,S)-1, D60(A,S)-3, D63(E)-1	131-30-00311/ 131-30-00312/ 131-30-00313/ 131-30-0	30
D60(A,E,P,PL,S)-6/7/8, D65~D68, D75A-1	141-30-00568/ 144-813-0053/ 141-30-00566/ 141-30-0	36
D61E-12	134-30-00110/ 134-30-00150	26
D65EX-12	14X-30-00142/ 14X-30-00141/ 14X-30-00143/ 14X-30-0	36
D75S-2~5, D80A-7, D80(A,E,P)-12, D80(A,E,F,P)-18, D83(E,P)-1, D85(A,E)-12, D85(A,E,P)-18, D85(A,E,P	155-30-00235/ 155-30-00234/ 155-30-00233/ 140-30-0	40
D135, D150, D155	175-30-00517/ 175-30-00515/ 175-30-00470/ 175-30-0	51
D275A-5	17M-30-00340/ 17M-30-01340/ UH122K0B	67
D355A-1/3	195-30-00106/ 195-30-00103/ 195-30-00104/ 195-30-0	72.3
D275A-2/3, D375A-1	195-30-00580/	71
D375A-2/3/5	195-30-01041/ 195-30-01042/ 195-30-01082/ 195-30-0	72.6
EX30-1/2	910920/ 4357784	4.7
ZX50	4403459	3
EX60	9062403	8
EX60-2/3	9108841	6
EX60-5, EX75	9153288	5
EX100-1	9061288/ 9105752	13
EX100-2~5, EX120-1~5, ZX110, ZX120	9092420/ 9092400/ 9160680	12
EX100M/ UH073	9062404	18
UH081	9029817	31
EX200-1,EX220-1, UH083, UH07-7, UH09-7, UH103, UH103LC	9105751/ 9062406	22
EX200-2~5/ EX220-2~5, ZX200~240	9089636/ 9134245/ 9178333/ 9270478	20
UH121	9024343	32
EX300-1, UH123, EX270, UH171, UH10-2 (TATA HITACHI : EX300)	9105750	30
EX300-2~5, ZX330, ZX270, ZX350	9149839/ 9245117/ 9096966/ 9191054/ 9062405	30
ZX330-3	9245117/ 9245169	30
EX400-1/2 (TATA HITACHI : EX400)	9072634	40
EX400-3~5, EX450-5, ZX450	9115233/ 4349516/ 9099140	40
ZX500LC-3, EX550-5	9109492/ 4349517	47
ZX650LC-3, EX750, ZX800, ZX850H	9078675	60
EX1900-5, EX1800-1~3	4349519/ 9066422	51
EX2500-5	9173150	100
EX3500	9173148	80
FH120, FH130, FH150	71400947	22
FH200	71400960	23
FH220, FH220ELC, FH220LC	71400963	22
FH270, FH300, FH300LC, FH330-3, FH330LC-3	71400969	30
FH400	71401039	40
MS110, MS110-8, MS120, MS120-8	C44301001	18
MS180-3, MS180-8	E34300200,E34300202, 965260	26
BD2G		12.4
E70, 307, 308	102-8076	7
E110, E120, E140, 311, 312, 314	936946/ 4I7345/ 990178/ UH070C1B	16
215, 215BLC, 215C, 225, 205B, 211B, 213B	6K9880/ 6K9879/ 3K7962	21
225, 225B, 225D	5A8374	30
E200B, EL200B, 315, 317, 318, 320, 322	8E5600/ 286-9824	20
E240, EL240	965260	20
E300B	960330	26
325, 330	6Y5323/ 102-8152/ 6Y8080/ 134-3010/ 6Y8227	40
235, 235B, 235C, LL229	1P8717/ 2P3514	40
235	3T3206/ 9S2730	36
245	8P6256	41
340, 345	124-7280/ 300-4610	44
350	8E4623	51
E450	946114	41
365BL, 375	6Y8168	57.5
D3, D3B, D3C, D3G, 931B, 931C, D4B, D4C, D4G, etc.	6S3609	16
D4, D4C, D4D, D4E, D4H, 933, 941, D5G, etc.	6K9880/ 6K9879/ 3K7962/ 124-3538	21
D5, D5B, D6, D6B, 561B~D, 951, 951B, etc.	5A8374/ 9S3570/ 3P3885/ 4K3985/ 5K6537/ 5M8631/ 8S	30
D5H, D6N, D6M	6Y3908	30
D6C, D6D, 955L, 963, D6G, etc.	3T3206/ 9S2730/ 3Y3402/ 5M7318/ 1V8055	36
D6H, D6R	6Y1781/ 235-5974	36
D7E, D7F, 571A, 977E, 977H, 977K, 977L	4S9691	41
D7F, D7G, 571F, 571G, 572F, 572G, 573, 973LGP, 977K, 977L.	1P8717/ 2P3514	41
D8H, D8K, 983B	8P6256	41
D8N	8E0400	41
D9G, D9H	7M5288/ 3P3403	71
SK30, SK42	24100N6291F3/ LE64D01006F1	4.5
SK60	24100N6291F1	5
K905-2, SK100, SK120, SK130, SK04-N2	24100N4038F1/ 24100N6506F1	16
SK07-1, SK09-1	24100N2110F1	20
SK07-N2, SK09N-2, K907-2	24100N4057F1	20
K907B	B90N0059F6	20
SK200-1~5, K909ALC, K909LC-2	24100N5946F2/ YN64D01022F1/ YN64D00014F1	20
SK200-6	YN64D01022F0	22
SK220-1/3	24100N6194F1	18
SK300-1	24100N3841F2	30
SK300-2/3	24100N7035F1	32
SK320, NEW HOLLAND E385B	24100N7035F3	32
SK400	24100N8640F1	35
450G	AT167254	22
650G	AT167256	27
650H		21
700H, 750C	AT175426	30
850C	AT175999	36
SH100/ SH120	KNA0592/ KNA0625	15
LS2800FJ2, S280F2, SH200, SH220	KRA1267/ KRA1302/ KRA1251/ KRA0793/ KRA1250	20
SH300, LS4300F2/C2/JS, LS5800F2/C2/JS	KTA0958	25
HD700, HD700VII	187-50600100	20
HD1250, HD1250VII	107-50600110	30
TD15B, TD15C	609600C93	30
TD20E	636878C91	39
TD25E FRONT	700475C93	56
TD25E REAR	345755R93	54
850, 1150	R33965/ D48684	21
1150B	R33594/ R25680	28
PR750B, PR1000, PR1000C, SF500, SF550, TR500	6K9880/ 6K9879/ 3K7962	21
K030	RC208-2190/ RC208-21921/ RC208-21922/ RC208-21923/	3.5
K040	68678-21900	6.9

Track Roller (Lower Roller, Bottom Roller)

Model	Part No	Weight (KG)
S50, S55-5, DH50	2270-1103/ 2270-1103A/ K9001713/ 2270-1103E	15
S55-5 SUPER GOLD, DX55, S55-V PLUS(EX)	K1007947A/ 270-00053A/ 270-00070A	15
S70-3	2270-6123
S75-V	270-00040C/ 270-00039C
S130-2~5, DH04, S140-5	2272-1061/ 2272-1061P/ 200104-00036	25
DX140	K10011871A
S150-5, S170-3/5, S175-5	2270-9403A	23
DX180	K1023169A
DH220	2270-1067	40
S220-3~5, S225-5, S250-5, S255-5, S200LC, S220LC, DH180, DX220, DX225 DX225NLC, DX255	2270-1098A/ 2270-1098/ K9001706/ K1000976A/ K10009	42
DH280, S280, DH320	2270-1032	54
S280-3, S290-5, S300-5, S320, S330(3/5), S330-5	2270-9025/ 2270-9401/ K9001699/ UF204E0E-G/ 2270-9	54
DX300, DX300LL, DX340	270-00048C/ 270-00048D/ 270-00048E/ 270-00048F/ 27	53
S340LC-7	K1039253
S360-3/5, S400-3/5, S420-5, S450-3/5, S470-5, DH450, S500-5	2270-9404A/ 2270-9404B/ K1001452 / 2270-9010/ 2001	83
DX420, DX480, DX520	270-00060
R45, R450	20T-30-00070	9.5
R55-3, R55M, R55MVP, R500, R550-3, R555M, R555MVP(~#791)	81M5-55000/ 81M6-55000/ 81M7-55000	13.2
R555MVP(#792~)	81M7-55101	10.3
R55-7, R555-7, R555-7K	81M8-11010	15
R130, R140, R1300-3, R1400-7	81E6-2002	35
R160, R210-3, R210ECONO, R250, R2200-3, R2500-3, R1800-3	81EM-10020/ 81EL-20020	40
R200, R200LC, R210-7, R250LC-7, HX80, R2000LC, R2000LC-2	E181-2002/ UF173T0E-G	40
R290-3~7, R320-3~7, R280, R2900-3~7, R3000-7, R2800K, R2800KLC	81E5-2002/ 81N8-11010 (E282-2102/ OLD)	54
R360LC-3~7, R420/R450LC, R450LC-3~7, R500LC-7, R3600-3~7, R4200/4500LC, R4500LC-3~7, R5000LC-7	81E7-0015/ 81E7-00631/ UF210E0E-G/ 81E7-00632/ 81E	83
MX3	772124-37300	10.2
MX3A	1081-03460	10.1
MX55, EC55	1181-00430/ 14543561	10
MX132, MX135, MX6LC, SE130, EC140	1081-01580/ 1081-03970	36
MX8-2,SE210, SE235, SE240, MX222, MX225, MX255, EC210, EC240	1081-00090/ 1081-03680/ 1181-00010/ 14527314/ 1457	41
MX10-2,MX292, MX295, SE280, EC290	1081-00060/ 1081-03871/ 1081-00731/ 1181-00781/ 10	54
MX352, MX452, MX14, MX16, SE350, SE450, EC360, EC460	1081-02570/ 1081-01800/ 1081-04411/ 14532330/ 1450	83
SD4P	3030-01040D	20
SD6P (S/F)	R33565D	23
SD6P (D/F)	GETT SD6P TR DF	27
SD15P (S/F)	141-30-00577	64
SD15P (D/F)	141-30-00587	66
SD20 (S/F)	D20-30-01589	75
SD20(D/F)	D20-30-01590	77
HE130		35
HE220	43L800000	42
HE280	4412L1672000	54
HE360/ HE450	703L10290	83
PC05, PC07	20M-30-31301	4
PC20-1~7 (STEEL), PC20-7R (RUBBER)	20S-30-00060/ 20N-30-00026/ 20N-35-71300	11
PC20-7	20N-30-00040	6.4
PC30	21U-30-R1301	6.2
PC30-7	20S-30-00021	8.6
PC40-6	20T-30-00041	10.2
PC40-7	20T-30-00070/ 20T-30-00071	9.5
PC40MR	20T-30-00173	9.5
PC60-1~3	201-30-00050	16.5
PC60-5/6, PC75U-1	201-30-00062/ 201-30-00060/ 21W-30-00050/ 201-30-0	16.9
PC60-6R, PC75UU-1	21W-30-00021	26.3
PC60-7	201-30-00291/ 201-30-00292	17.4
PC100-1~6,PC120-1~6, PC128-6, PC80-1~3, PC90	203-30-00140/ 203-30-00220/ 203-30-44000/ 203-30-0	25
PC200-1/2/3, PC220-1~3, PC150-1~3, PC180-3, PC240-3 (M18)	205-30-00172/ 20Y-30-00130/ 20Y-30-00010/ 205-30-0	36
PC200-3~7, PC220-5~7, PC150-5, PC240-5 (M20)	20Y-30-00012/ 20Y-30-00014/20Y-30-00015/ 20Y-30-00	40
PC300-1/2, PC280-3	207-30-00024/ 141-30-00578/ 207-30-00022 (S/F)	60
PC300-3	207-30-00130	53
PC300-5/6/7, PC350-6	207-30-00150/ 207-30-00510/ 207-27-61210	54
PC400-1~6, PC450-6, PC360-5	208-30-00210/ 208-30-00230/ 208-30-00023/	80
PC650-1~5, PC710-5	209-30-00029/ 209-30-00191	161
PC650LC-6	21M-30-00100	110
PC1000-1	21N-30-00023	170
D20(A,S,P,Q,PL)-5, D21(A,S,P,Q,PL)-5, D21(E,P)-6	201-30-00050/ 101-30-00042/ 110-30-00045 (S/F)	16.5
D30(A,S,P,Q)-12/15, D31(A,S,P,Q, PL, PLL)-16~18, D37(E,P)-1/2	111-30-00274/ 111-30-00130/ 111-30-00272 (S/F)	30
D30(A,S,P,Q)-12/15, D31(A,S,P,Q, PL, PLL)-16~18, D37(E,P)-1/2	111-30-00281/ 111-30-00140/ 111-30-00284 (D/F)	32
D31PX-21	113-30-00170 (S/F)	29
D40(A,P,PL,PLL)-1, D41(A,F,P,Q,S)-3, D45(A,P,S,E)-1, D50 D50S, P, D50(A,S,P)-8, D50S-10, D50(A,S,P)-	131-30-00322/ 140-30-00052/ 140-30-00053/ 140-30-0	50
D40(A,P,PL,PLL)-1, D41(A,F,P,Q,S)-3, D45(A,P,S,E)-1, D50 D50S, P, D50(A,S,P)-8, D50S-10, D50(A,S,P)-	131-30-00332/ 140-30-00062/ 140-30-00063/ 141-30-0	53
D41-6	124-30-52502	35
D41-6	124-30-52602	40
D60(A,E,P,PL,S)-6/7, D60(E,F)-8, D65(A,C,E,P,S)-6, D65(A,P,S)-7/8 D66S-1, D68(E,P)-1, D75A-1	141-30-00578/ 141-30-00570/ 141-30-00571/ 141-30-0	65
D60(A,E,P,PL,S)-6/7, D60(E,F)-8, D65(A,C,E,P,S)-6, D65(A,P,S)-7/8 D66S-1, D68(E,P)-1, D75A-1	141-30-00588/ 141-30-00580/ 141-30-00581/ 141-30-0	66
D60(E,P)-8, D65A-8, D65(E,EX)-12, D65(P,PX)-8, D75A-1, D85E-2A	14X-30-00080/ 14X-30-00081/ 14X-30-00082/ 14X-30-0	64
D60(E,P)-8, D65A-8, D65(E,EX)-12, D65(P,PX)-8, D75A-1, D85E-2A	14X-30-00090/ 14X-30-00091/ 14X-30-00092/ 14X-30-0	66
D61E-12	131-30-00342/ 134-30-00170 (S/F)	50
D61E-12	131-30-00352/ 134-30-00180 (D/F)	55
D75S-2, D80, D80A-5~12, D80(E,P)-12, D85(A,E)-12, D80(A,S,P)-21	154-30-00505/ 154-30-00504/ 154-30-00400/ 154-30-0	75
D75S-2, D80, D80A-5~12, D80(E,P)-12, D85(A,E)-12, D80(A,S,P)-21	154-30-00405/ 154-30-00500/ 154-30-00502/ 154-30-0	77
D75S-2~5, D80(A,E,P)-18, D85(A,E,P)-18/21, D95S-1/2	155-30-00240/ 145-30-00320/ 145-30-00250/ 154-30-0	75
D75S-2~5, D80(A,E,P)-18, D85(A,E,P)-18/21, D95S-1/2	155-30-00250/ 145-30-00330/ 145-30-00260/ 154-30-0	77
D135~D155A-1/2 COLLAR	175-30-00760/ 175-30-00544/ 176-30-00115/ 175-30-0	100
D135~D155A-1/2 COLLAR	175-30-00770/ 175-30-00554/ 176-30-00125/ 175-30-0	105
D155A-3, D155AX-3 SHAFT	17A-30-00070 (S/F)	100
D155A-3, D155AX-3 SHAFT	17A-30-00080/ 17A-30-00180 (D/F)	105
D275A-2/3	17M-30-00220 (S/F)	112
D275A-2/3	17M-30-00230 (D/F)	124
D275A-5 SHAFT	17M-30-00320 (S/F)	119
D275A-5 SHAFT	17M-30-00330 (D/F)	129
D355A-1/3(~#1631)	195-30-00411/ 195-30-00238/ 195-30-00443/ 195-30-0	160
D355A-1/3(~#1631)	195-30-00420/ 195-30-00248/ 195-30-00453/ 195-30-0	170
D355A-3(#1632~), D355A-5, D355C	195-30-00331/ 195-30-00332/ 195-30-00333/ 195-30-0	159
D355A-3(#1632~), D355A-5, D355C	195-30-00341/ 195-30-00342/ 195-30-00343/ 195-30-0	167
D375A-1	195-30-00562 (S/F)	128
D375A-1	195-30-00572 (D/F)	139
D375A-2/3	195-30-01010/ 195-30-01011/ 195-30-01051/ 195-30-0	138
D375A-2/3	195-30-01020/ 195-30-01021/ 195-30-01061/ 195-30-0	151
D375A-5	195-30-01411/ 195-30-01451 (S/F)	137
D375A-5	195-30-01421/ 195-30-01461 (D/F)	151
EX12-5, EX15-5		5.8
EX30-1/2, EX22, EX25-1/2, EX35-1/2, E20UR-1/2, EX30UR-1/2, EX40UR-1~3	4340535/ 9106668	5.4
EX40-1, EX45-1	4405892/ 9106672	9.7
EX40-2	4357785	10.9
EX50UR, ZX50	4357785	10.9
EX60-1	9046234/ 9066207	16
EX60-2/3 (TATA HITACHI EX60)	9096970	13
EX60-5, EX80-5, ZX70, ZX75, ZX80, ZX75US, ZX85US	9153152/ 9177016/ 9182805	13
EX90-1	9066206	24
EX100/EX120-1~5, ZX110	9066508/ 9132600/ 9092522	25
EX100M, EX130H-5, EX150, EX150M	9114616/ 9066691	27
UH04, UH04M, UH042, UH043, UH045, UH051~3, UH061~3	9018354	22
EX200,UH07-5/7, UH081, UH101 (TATA HITACHI EX200)	9066510	42
EX200-1, EX200LC, UH103, EX220-1, EX220LC, UH09-7	9066509/ 9114618	36
EX200-2/3/5, EX220-2, EX230-5, ZX160, ZX180, ZX200, ZX210, ZX225 ZX230, ZX240	9089173/ 9132602/ 9184516/ 9134243	36
ZX200-3	9247144	36
EX300-1~5, EX270-1/2, UH10LC, UH121LC, UH122LC, UH143LC, ZX270, ZX330, ZX350	9114682, 9114619, 9168173, 9066690	54
ZX330-3	9249808/ 9253782	56
EX400-1~5, EX450-5, ZX370, ZX450, UH14, UH16, UH171, UH172, UH181 (TATA HITACHI EX400)/ ZX450-3	9129347/ 9072631/ 4386648/ 9115234/ 4633629	83
ZX480, ZX500, ZX600, ZX650H	9109493/ 4348373/ 4473719/ 4473720	110
ZX650LC-3, ZX660LCH-3, EX750-5, ZX800, ZX850	9151869/ 4050792	143
EX1200-5, EX1100-1~3	9114262/ 4300532	199
EX1800-1~3	9114725/ 4295201	315
FH120, FH130	9114725/ 4295201
FH200, FH200-3, FH200E-3, FH200LC-3	45013640	41
FH220	71318808
FH270-3, FH300, FH300LC, FH330-3, FH330-3, FH330LC-3	71483187/ 71400941	54
FH400, FH400LCH, FH450LCH		83
304CR	158-4765	9.4
E70, 307, 308	932027/ 127-3806	14.6
E110B, E120B, 311, 312, 314	938747/ 151-9747/ 4I7346/ 861934/ 990189/ 990190/	25
205, 205B, 211, 211B, 213, 213B, 215B, 215C, 215D, 225	8E7494/ 5W4144/ 7T6395	22
215	3T4352/ 6S3607	30
215B, 215BSA, 225, 225B, 225BLC, 225LC	8E5745	42
219, 219LC, 219D, 225B, 225BLC, 225D, 225DLC	8E4573/ 9W6721/ 9W6789	42
215, 225	6T9887	22
E200B, 320, 315, 317	991109/ 117-5045/ 8E5034/ 8E5032/ 6Y1056/ 1R8669/	36
E240, E180, MS180-8	0957138/ A065-00112	36
225, 227	6T9878	45
322	163-4145/ 6I9396	43
325	117-5046/ 6Y1057/ 163-4147/ 247-0565/ 206-1264	45
E300B, EL300	854973/ A065-00122	49
330	163-4149/ 117-5047/ 6Y2795/ 179-1486/ 183-2874	55
235, 227, 229	8E4576	54
235, 235B, 235C, 235D, 235DLC	8E4579	54
225, 227	9G8029/ 7G0421	60
227, 235	6Y2901/ 9G8099/ 5M4447/ 1V8052	60
340, 345	178-7293/ 123-1379/ 152-4128	78
E450, MS450	863096/ G643-00200B	85
350	189-0475/ 109-1214	94
245	8E0830	124
365BL, 375	178-7288	164
D3, D3LGP, D3B, D3C, D3CLGP, D3G, 931, 935, D4B, D4C, D4G	3T4352/ 6S3607 (S/F)	30
D3, D3LGP, D3B, D3C, D3CLGP, D3G, 931, 935, D4B, D4C, D4G	3T4353/ 6S3608 (D/F)	34
D4, D4C, D4D, D4E, 933F/G, 941, 943	6T9887/ 3B1404/ 4B9716/ 6B5362/ 8B1599/ 4F5322/ 7F	45
D4, D4C, D4D, D4E, 933F/G, 941, 943	6T9883/ 4B5291/ 4B9717/ 6B6238/ 8B1600/ 4F5323/ 7F	48
D4H	7G4836/ 124-8237 (S/F)
D4H	7G4837/ 124-8240 (D/F)
D5, D5B, D6, D6B, 561, 951, 953, 955	6T9879/ 6B9385/ 1F6471/ 4F3531/ 7F2463/ 1M3826/ 4K	50
D5, D5B, D6, D6B, 561, 951, 953, 955	6T9875/ 6B9386/ 1F6472/ 4F3532/ 7F2464/ 1M3827/ 4K	56
D5H, 953	9P1368/ 121-0824 (S/F)	42
D5H, 953	9P1363/ 121-0827 (D/F)	47
D5M, D5G	124-8237 (S/F)	33
D5M, D5G	124-8240 (D/F)	35
D6C, D6D, 955L	6Y2901/ 9G8099/ 9S9405/ 5M4447/ 1V8052/ 118-1614	60
D6C, D6D, 955L	6Y2903/ 9G8098/ 9S9404/ 5M4446/ 1V8051/ 118-1615	67
D6D, 963	9G8029/ 7G0421/ 1181617 (S/F)	60
D6D, 963	9G8034/ 7G0423/ 1181618 (D/F)	67
D6H, D6R, 963, D6G	7T4102/ 120-5746/ 231-3087/ 288-0934 (S/F)	60
D6H, D6R, 963, D6G	7T4107/ 120-5766/ 231-3088/ 288-0935 (D/F)	67
D6M, D6N	121-0824 (S/F)	45
D6M, D6N	121-0827 (D/F)	49
D7C, D7D, D7E, 571A, 572E, 977H, 977K, 977L	1P9100/ 6B3137/ 7B9458/ 8B5159/ 1F6212/ 2F3085/ 7F	75
D7C, D7D, D7E, 571A, 572E, 977H, 977K, 977L	1P9102/ 7B9459/ 8B9160/ 1F6213/ 2F3086/ 7F2470/ 7M	83
D7F, D7G, 973, 977K/L, 571F/G, 572F/G	6T9871/ 3P1520/ 3P6062/ 4S9050/ 4S9051/ 9S0316 (	75
D7F, D7G, 973, 977K/L, 571F/G, 572F/G	6T9867/ 3P1521/ 3P6063/ 6P9885/ 8S2932/ 8S2933/ 9S	83
973C	134-6636	73
973C	134-6637	81
D7H/R	9W5586/ 124-8250/ 231-3090/ 323-5925 (S/F)	72
D7H/R	9W5585/ 124-8253/ 231-3092/ 323-5928 (D/F)	79
D8H, D8K, 583H, 583K	6P4897/ 7S9041/ 9H6449/ 9P3308/ 183-2874 (S/F)	110
D8H, D8K, 583H, 583K	6P4898/ 7S9042/ 9H6451/ 9P3309 (D/F)	123
D8L	9W7826/ 7G7594/ 2Y8240/ 2Y8489/ 7T2018	87
D8L	9W7827/ 7G7595/ 2Y8239/ 2Y8709	93
D8N, D8R, 578	9W8705/ 7T9188/ 196-9947/ 246-0775/ 107-8082 (S/F	95
D8N, D8R, 578	9W8706/ 7T9193/ 196-9946/ 246-0779/ 107-8083 (D/F	104
D9G, D9H	7S7672/ 8P5605/ 4M0582 (S/F)	155
D9G, D9H	7S7673/ 8P5604/ 4M0583 (D/F)	164
D9L	6Y2950/ 9G8641/ 7T1831 (S/F)	128
D9L	6Y2951/ 9G8642 (D/F)	132
D9N, D9R	7T1258/ 7T1259/ 104-3495/ 107-2688/ 196-9955/ 197-	108
D9N, D9R	7T1253/ 7T1254/ 104-3496/ 107-2689/ 196-9954/ 197-	112
D10N, D10R, D10T	6Y0889/ 195-5855 (S/F)	147
D10N, D10R, D10T	6Y0890 195-5866 (D/F)	156
SK030		8.5
SK045SR	PH64D00010F1	10.8
SK60, SK03	24100N6734F1/ 24100N6292F2/ LE64D00001F1	16.3
K903	24100N2969F1	16.5
SK60-5		16.3
SK04, K904C	B90N-0061F5	20
SK100, SK120, SK04N2, K905-2, K905/LC, SK04N2LC,SK05, K904E	24100N4042F2	36
K907B, K907C, K907-2, K907D, SK07-2	24100N6400F2/ B90N0059F6	39
SK200, SK100M-3/5	24100N6419F1/ 24100N5947F3/ 24100N5947F2	39
SK200-2~6, SK230, SK235SR-1	YN64D00013F1/ 24100N8009F2/ YN64D00019F1	39
SK220-1~5, SK270, SK220LC	24100J11696F2/ 24100J11696F3	46
SK09-N2	24100J6186F1	43
SK300, SK300LC-3, SK270-5, SK400	24100N3856F1/ 24100N3856F3	60
SK310-2/3	24100N7032F1	68
SK320		60
SK330, SK330-6, NEW HOLLAND E385B	LC64D00005F1	58
SK400	24100J4396F2	80
MS110-3/5	C44302901 (S/F)	39
MS110-3/5	(D/F)	42
MS120-8	C84300200	38
MS180-3	E14301900 (S/F)	38
MS180-3	E14301800 (D/F)	41
MS180-8	A065-00112	38
SH100, SH120	KNA0242/ KNA0532	29
SH120-3	KNA0693	22
SH200	KRA1189 OUTER	36
SH200	KRA1190 INNER	38
SH220, SH220-2 (INNER)	KBA0870/ KBA1050/ KBA0433	45
SH220, SH220-2 (OUTER)	KBA0869/ KBA1047/ KBA0432	45
SH220-3		36
SH280		60
LS2800FJ2, S280FJ2 (INNER)	KRA0785	36
LS2800FJ2, S280FJ2 (OUTER)	KRA0781	36
SH340		60
LS4300, SH300 (INNER)	KSA0672	52
LS4300, SH300 (OUTER)	KSA0671	53
LS5800, SH400 (INNER)	KSA0674	69
LS5800, SH400 (OUTER)	KSA0673	70
H45, ME45	72030010	13.9
HD250, HD250VII	767-50800100	16
HD400-1		22
HD400-2		22
HD550		22
HD700, HD820, HD1023	271-50800110/ 547-50800110/ 707-50800101/ 737-5080	36
HD800		36
HD820, HD1023	707-50800101/ 737-50800101	45
HD1220		60
HD1250, HD1250VII	587-50800100	60
HD1880		65
455C	4968573	15
FL4 (S/F)	5111357	20
FL4 (D/F)	5111356	22
FL6 (S/F)	4991645	33
FL6 (D/F)	4989224	37
FL10 (S/F)	76029446	46
FL10 (D/F)	76029443	51
HD11E	70680950	53
FL14C (S/F)	76013223	57
FL14C (D/F)	76013222	63
1080, 1080B		22
1187, 1187B, 1280, 1280B		41
980, 980B		42
450A, 450B	R33565	23
850, 1150 (S/F)	R33552/ R24102/ R56593	31
850, 1150 (D/F)	R33553/ R24103/ R56874	36
1150B (S/F)	R33571	38
1150B (D/F)	R33572	42
TD7C/E	662822C91	29
TD8C/E	621481C93	36
TD15E (S/F)	741145C92	51
TD15E (D/F)	741146C92	55
TD20E (S/F)	655474C92	75
TD20E (D/F)	655475C92	81
MF200 (S/F)	3531319M91	21
MF200 (D/F)	3531417M91	23

Brand	Model
Caterpillar	CAT311 - 345 (E110 - E300), D3 - D8N (D9N)
Komatsu	PC60 - PC450, D30 - D155
Doosan (Daewoo)	All kinds of Roller for Doosan (Daewoo)
Hyundai	All kinds of Roller for Hyundai
Volvo (Samsung)	All kinds of Roller for Volvo (Samsung) excavator and dozer
Hitachi	EX60 - EX450 (ZX70 - ZX450)
Kobelco	SK60 - SK320
Kato	HD250 - HD1250, HD1880
Etc	Mitsubishi, Sumitomo, Libherr, etc.

The brand names such as Hyundai, Doosan, Volvo, Cat, Caterpillar, Case, John Deere, Komatsu, Hitachi, JCB, Atlac Copco, Sandvik, Tamrock, Furukawa, Toyo, Ingersoll Rand, or any others are registered trademarks of the respective original manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
