Pump & Motor Assy

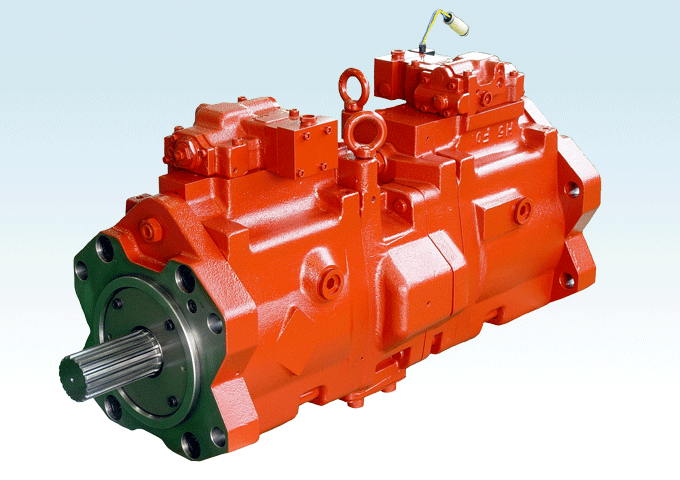

K(H)3V180 Main Pump Assy

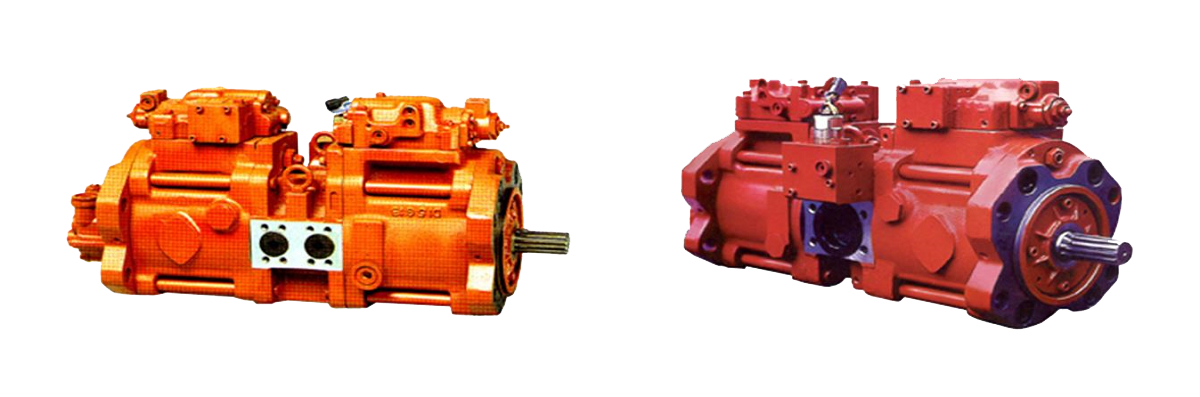

Main Pump Assy - K3V63DT, K3V112DT, K3V140DT, K3V180DT

Model	Part No	Weight(KG)
S140-V	2401-9236B	85
S225-V	401-00356A	128
S290-V	2401-9233B	174
S300-V	401-00424C	127
S340-V	400914-00245	146
S420-V	400914-00247	180
S470-V	400914-00248	180
DX140LC	K1024107A	141
DX225	400914-00212	185
DX300	K1006550C	127
DX340	400914-00249	180
DX420	400914-00251	180
DX480	400914-00252	180
R210LC-7	31N6-10010	150
R250LC-7	31N7-10010	150
R290LC7	31N8-10010	145
R305LC-7	31N8-10011	145
R320LC-7	31N9-10010	185
R360LC-7	31NA-10010	160
R360LC-7A	31NA-10030	200
R450LC-7	31NB-10010	260
R500LC-7	31NA-10010	200
R800LC7A	31ND-10010	310
EC140B	14531858	90
EC210B	14595621	120
EC290B	14524052	160
EC360B	14512271	196
EC360B	14566659	196
EC460B	14531857	200
EC460B	14618624	200
EC460B	14618624	200

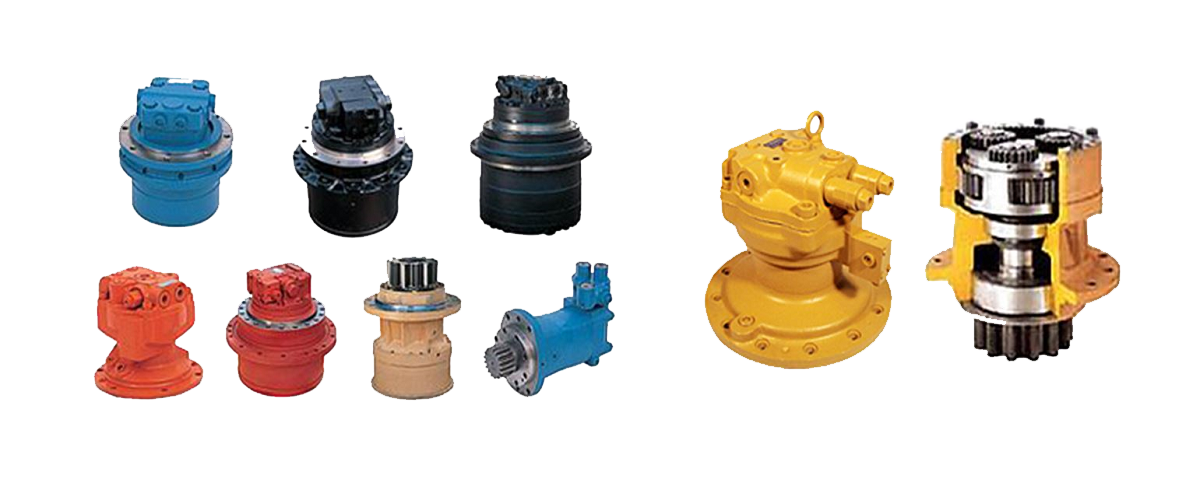

Reduction Gear and Motor Assy

Model	Part No	Weight(KG)
S140-V	404-00062	87
S225-V	130426-00004	170
S290-V	2101-1025K	292
S300-V	130401-00021	294
S340-V	130426-00014	332
S420-V	130426-00015	355
S470-V	130426-00005A	170
DX140LC	K1007357B	130
DX225	130426-00011	174
DX300	170301-00099	405
DX340	130426-00014	332
DX420	130426-00015	355
DX480	130426-00005A	170
S140-V	2401-9121B	187
S225-V	401-00454C	367
S290-V	K1001992C	403
S300-V	K1001992C	403
S340-V	170401-00027A	380
S420-V	2401-6357	439
S470-V	2401-9229A	370
DX140LC	170401-00029A	158
DX225	170401-00041A	341
DX300	170401-00048	406
DX340	170401-00014A	404
DX420	2401-6257E	439
DX480	2401-9229A	370
R210LC-7	31N6-10150	170
R250LC-7	31EN-10070	290
R290LC7	31N8-10180	320
R305LC-7	31N8-10180	320
R320LC-7	31N9-10151	350
R360LC-7	31NA-10150	350
R360LC-7A	31NA-10150	350
R450LC-7	31NB-11150	380
R500LC-7	31NB-11150	380
R800LC7A	31ND-11140	380
R210LC-7	-	-
R250LC-7	XKAH-00487	240
R290LC7	31N8-40070	250
R305LC-7	XJCK-00081	250
R320LC-7	XJCK-00081	250
R360LC-7	XKAH-01061	300
R360LC-7A	XKAH-01032	300
R450LC-7	34E7-02500	370
R500LC-7	34E7-02500	370
R800LC7A	31ND-40050	820
EC140B	14541064	90
EC210B	14541069	210
EC290B	14542165	310
EC360B	14619955	300
EC460B	14541030	210
EC210B	-	-
EC290B	-	-
EC360B	-	-
EC460B	14608847	400
EC460B	14608847	400

Main Pump

 T5V series piston pump for construction equipments and general industry.

Size		63	112	140	180
Displacement(cc/rev)		63	112	140	180
Pressure(kgf/cm2)	rated	320
	Max.	350
Speed	*1. max for self priming	2,600	2,200	2,000	1,850
	*2. max	3,250	2,700	2,500	2,300
max. input torque of tandem pump(kgf-m)		30	55	92	104
Weight(KG)		81	125	160	160
Hydraulic fluid	type	*3. antiwear hydraulic fluid
	oil temperature range	-20 ~ +95ºc
	oil viscosity range	10 ~ 1,000 cSt
	filtration	suction line		80 ~ 150 mesh
		return line		nominal 10 micron meter

*1.	At max. displacement. In case of engine driving, max. idling speed should be lower than this value.
*2.	Suction pressure should be exceeded 1kgf/cm²
*3.	For application of different type please consult with us.

Travelling Motor - High/Low Speed Motor

 Travelling motors with strong power and excellent performance for Excavators.

MODEL		TM07VA	TM24V	TM24VA	TM35VA	GM35VL	TM60VA
Rated output torque (tonf-m)		0.72	2.4	2.4	3.5	3.5	6.34
Max Speed (r.p.m)		65	50	60	50	60	34.5
Gear Ratio		53.70	48	48	41.78	66	63.84
Hydraulic Motor	displacement (cc / rev)	39.8	119.5	140.5	183.9	140.5	195
	max. speed (r.p.m)	3,600	2,400	2,800	2,100	2,800	2,340
	pressure (kgf/cm2)	320	350	350	350	350	350
Parking Brake	braking torque (kgf-m)	8.4	27	40.6	49.3	40.6	44.4
	release pressure (kgf/cm2)	9	11	6	9.5	6	8.5
Brake Valve	model	B08B	B27	-	B35	-	-
	rated flow (l/min)	100	200	250	250	250	280
Weight (KG)		87.5	240	-	308	275	375
Application	m3	0.2 - 0.3	0.5 - 0.7	0.5 - 0.7	0.7 - 1.2	0.7 - 1.2	1.3
	ton	5 - 8	14 - 18	14 - 18	18 - 25	18 - 25	28 - 33

Swing Motor

 T3X series is an axial piston motor developed as a swing motor for construction machine.

Size		63	128	150	170
Displacement(cc/rev)		64.0	127.9	148.5	169.4
Pressure(kgf/cm²)	rated	300
	max	350
max. speed(r.p.m)		2,200	1,700	1,600	1,500
*1. theoretical output torque(kgf-m)		30.6	61.1	70.9	80.9
*2. theoretical output power(kW)		69	107	116	125
Brake	max. traking torque(kgf-m)	22	71	71	71
	release pressure(kgf/cm2)	22	30	30	30
	allowable release pressure(kgf/cm2)	50
weight(KG)		29	59	59	59

*1.	The theoretical valve at the rated pressure, not including mechanical diffciency.
*2.	The theoretical value at the rated pressure and the maximum speed.

SX Motor

 Low-speed, high-torque, radial piston motor, called SX Motor, is far ahead of similar motors in performance, realiability, output and variety of sizes available.

SX Series

MODEL		SX504BM	SX505CD	SX505CD/24	SX506BM	SX508BM
*1. Displacement (cc/rev)		189	492	295	745	1,510
Pressure(Kg/m2)	Rated	210
	Max	250
Max. speed (r.p.m)	at 140 kgf/cm2	500	500	500	400	300
	at 210 kgf/cm2	300	275	275	250	200
Rated torque (kgf.m)		58	152	84	230	470
Max. fluid Temperature		80
Permissible viscosity range (cSt)		10 - 100
Weight (KG)		38	72	72	110	185
