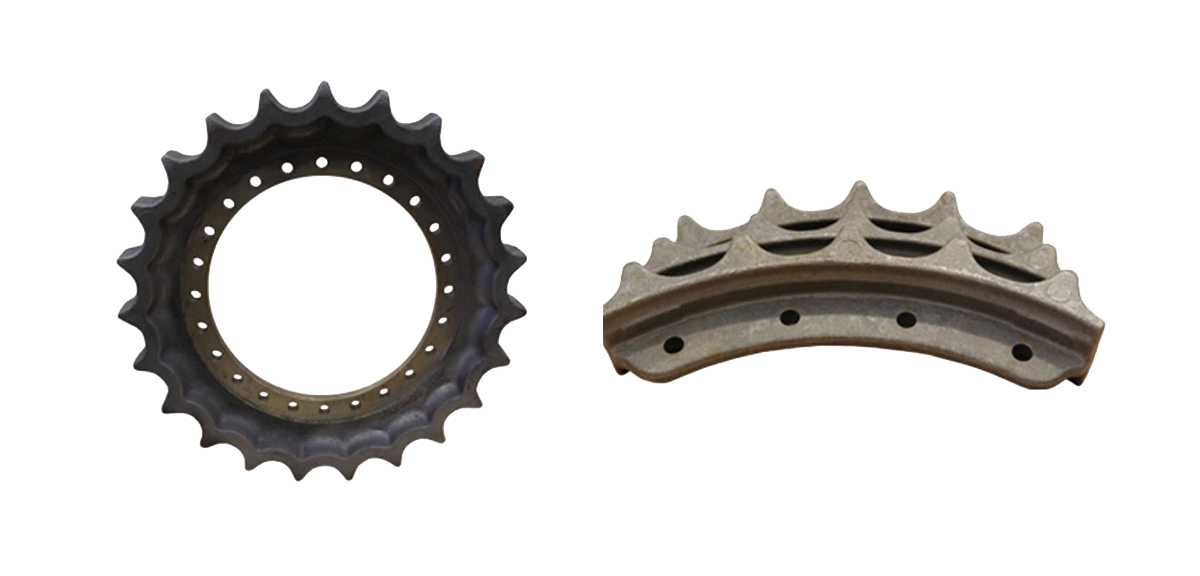

Sprocket, Segment

Excavator Sprocket

Model	Part No	Weight (KG)
S50, S55-5, S55-5 SUPER GOLD	2270-1025S / 2108-1025BP (12H)	19.5
DX55/S55-V	2108-1036A / 200108-00022
S70-3	2108-9003S / 2108-1042/ 108-00011	42
S75-5	108-00020A (24H)
S130, S130-2, S130-3, S130-5	2108-1005A / 2108-1005B/ 2108-1040/ UR171E221-G/ 21	44
DX140LC	K1018303
S155LC-V, S170, S170-3, S170-5	2108-1019B / 2108-1019C/ UR171V323-G (21H)	45
DX160LC, DX180LC	K1011438 (24H)
S200, S220	2108-1014S	54
S220-3, S220-5 (~#1620)	2108-1028 / 2108-1028A/ 2108-1028B/ 2108-1028C/ 108	50
S220-5 (#1621~), DX220LC, DX225LC, DX225NLC	108-00017A / 108-00017B/ K1000682/ K1015639/ UR190E	44
S255LC-5	108-00008A / UR190E921
DX255LC	K1010542 (26H)
S280, DH280, DH320	2108-1021 / 2108-1021S/ 2108-1024 (24H)	75
S280, S280-3, S290-5, S300-5, S330-3(~#538)	2108-1015S / 2108-1029 (16H)	75
S290-5, S300-5, S330-3(#539~), S330-5, S340-5	2108-1038 / 108-00018 (24H)	75
DX300LC, DX340LC, S340LC-V	108-00022B (24H)
S360-3/5, S370-5, S400-3/5	2108-4003A (24H)	90
S400-5, S420-5, DX420LC	2108-1043A / 108-00021A/ K1004460/ UR215E121-G (28H	90
S450	2108-9401 (16H)	95
S450-3, S450-5, S470-5, S500-5	2108-1031 / 108-00019/ 108-00019A/ UR215E023-G (24	95
DX480LC, DX520LC	K1000377 (24H)
R55-3, R500, R550-3	81M5-52000	16
R55-3, R55-7, R550-3, R555M, R555MVP, R555-7	81M6-57010 / 81M8-10010/ 81M8-10011 (12H)	18
R130-3(~#1563), R130LC	81E6-2001 (22H)	55
R130-3(#1564~), R140-7, R1300-3(#1564~), R1400-7	81E6-10050 / 81E6-10051/ 81E6-10052/ 81E6-10053 (21	41
R200LC, HX80 (FOR REXROTH TYPE)	82E1-2001 (16H)	55
R180-3, R180-7, R200LC, R200NLC, HX80, R1800LC-3	E181-2001 / E181-20011/ E181-20012/ E181-20013 (2	55
R210ECONO, R210-3, R210-7, R250-3, R2200-3, R2200-7, R2500-3	81EM-10010 / 81EM-10011/ 81EN-10010/ 81EN-10011/ UR	65
R210-3, R210-7, R250-3, R250-7, R2200-7, R2500-3	81EM-10012 / 81EM-100123/ 81EN-10012/ 81EN-10013/ U	65
R290-3, R320LC, R320-3, R2800KLC, R2900-3, R3200LC	81E5-2001 (16H)	90
R290-3, R320-3, R290-7, R320-7, R2900-3	81E5-20010 / 81E5-20011/ 81E5-20012/ (24H)	90
R290-7, R305-7, R320-7, R2900-7, R3000-7	81N8-10010 / 81N8-10011/ 81N8-10012/ 81N8-10013/ 81	84
R360-3, R360-7, R3600-3, R3600-7, R370-7, R3700-7	81EH-10010 / 81EH-10011/ 81EH-10012/ 81EH-10013/ UR	85
R420LC, R4200 (KOMATSU ENGINE)	81E7-2001 / 81E7-20011/ 81E7-20011S	80
R450-3, R4500-3 (LINDE)	84E7-00010 / 84E7-00011/ 84E7-00011S	100
R450-3, R450-3A, R450-7, R500-7, R4500-3, R4500-7, R5000-7	84E7-00660 / 84E7-00661/ 84E7-00662/ 84E7-00663/ UR	118
SE25,MX3	1030-20030 (12H)	19
MX55	1181-00420 (12H)	20
EC55, MX55A	1181-00421 / 14507728 (12H)	20
SE130, SE130-2, MX132	1081-03860 (21H)	34
EC140, MX135, SE130-3, SE130LCM-3	1181-01190 / 14532435 (22H)	35
SE210,MX8-2	1030-60001 / 1081-03700/ 1081-01200 (16H)	50
MX8, SE210-1	1081-60001 (23T/22H)	50
SE210LC-2, MX222, EC210, EC160B, EC140LCM, SE210-3, MX225LC	1181-00050 / 14532385/ 14532383/ 1081-03710/ 1081-0	50
EC240, SE240, SE235, MX255	1181-00380 / 14532401 (21T/18H)	50
SE280, MX292, MX10-2,SE280LC-2	1081-03900 / 1081-00020 (16H)	78
MX10-2	1081-01970 (24H)	78
EC290, MX295	1181-00680 / 1181-00681/ 14532419/ 14520824(16H)	62
EC360, SE350, MX352, MX14	1081-01850 / 14532315/ 14604301 (24H)	90
EC460, SE450, MX452	1081-02210 / 14533155/ 14532318 (24H)	95
SD4P	201-27-11530	20
SD6P	R46696 (7H)	45
SD15P	3081-00010 (1SET : 3TEETH X 9PCS)	90
PC60-1~5	201-27-11530 (25T)	20
PC60-1~5	101-27-00050 (Rim)	37
PC60-6/7, PC75U-1	21W-27-11110	25
PC100-1, PC120-1	113-27-21410
PC100-1~3, PC120-1~3	113-98-22210
PC100-5/6, PC120-5/6	203-27-51310 / 203-27-61310	33
PC200-3, PC180-3, PC220-3, PC240-3/5	205-27-71281 (20H-M18)	40
PC200-5~7, PC220-5/6	20Y-27-11581 / 20Y-27-11582 (20H-M19)	40
PC300-1	207-27-21311	70
PC300-3/5, PC280-3, PC300-5	207-27-33222	70
PC300-6/7, PC350-6	207-27-61210	80
PC400-1	208-27-11423	90
PC400-3/5, PC360-5	208-27-31221	90
PC400-6/7, PC450-6	208-27-61210	95
EX30		16.6
ZX27U	1032265	10.2
ZX30U	2039666	8.2
ZX40U	1036283	12
EX45-2	1032012	17.7
EX60-1	1010447	25.5
EX60-2/3, EX90-1	1012495	25.5
EX60-5, ZX70U, ZX80	1024217	18.7
EX100-1~5, EX120-1~5, ZX110, ZX120, ZX130	1010325	35
EX100M, EX150	1007849 / 1008249	49.3
EX200-1, EX200LC	1010204/	50
EX200-3, ZX160, ZX160L	1018740 / 1021239 (INNER DIA : 420MM)	45
EX200-2/5, EX150-1, EX220-1~5, EX230-5, ZX110M,ZX230, ZX240	1020990 / 1010203 (INNER DIA : 431MM)	45
ZX200-3, ZX225USRLC-3	1033091
ZX240-3	1032489
EX300-1/2, EX270-1/2	1010467	80
EX300-3,EX270-5	1017928	80
EX300-5, EX330-5, ZX270, ZX330, ZX350, ZX370	1022168	85
ZX330-3	1033227
EX400-1~5, EX450-5, ZX450, ZX370MTH, ZX450H	1010956 / 1028494	90
ZX650, EX550	1020265
ZX850, EX700, EX750	1017812
EX1200-5	1013481
FH120, FH130		45
FH150	71402928	45
EX135	1026092
FH200, FH200LC	71402078	50
FH220, FH220LC	71402489	45
FH300, FH300LC, FH330	71402768	80
FH400	71447247	90
E110B, 311, 312, 314C	4I7472 / 993220/ 961479	30
E120B	099-0219	30
E180, EL180	957412
E200B, EL200B	964327 / E84690100	45
320, 322	8E9805 / 286-9821	45
E240, EL240	959779	45
325, 320S	6Y4898	60
E300, EL300, E300B	994129	85
330	6Y5685 / 7Y0763	95
E450	946133
345B	124-3296	87
350	8E6974	95
SK60	2404N267
K904	6HOLES
SK100, SK120-3/5, SK04-N2, SK905-2	2404N271 / 2404N254	50
SK115
SK07		50
SK07-N2, K907-3	2404N251 / 2404N261	63
K907B/C	2404N182C2	56
K907-2, K907D	2404N246	63
SK200-1~5	2404N262 / 2404N414	45
SK220-3, SK250-4	2404N264 / LQ51D01002P1	60
SK09, K909, K909-A	2404N183C2	88
SK09-N2	2404N252	65
SK300	2404N256	60
SK400	2404N257	125
MS110-3	993220
MS180-3/8	957412	45
SH100, SH120, JS130, LS2650Q	KNA0323 / JNA0113
SH200, LS2800Q	KRA1109	30
SH300	KSA1061	45
JS200	KLA0011	45
HD250, HD307		20
HD400-1/2		30
HD700, HD800, HD900	314-50201020	50
HD1250, HD1430		65
KH130		22
IC70		31.5
HR3.7		7.2
TD08		5.8
TD09		5.8

Dozer Segment

Model	Part No	Weight (KG)	Remarks
D20(A,S,P,Q,PL)-5, D21(A,S,P,Q,PL)-5, D20P-6, D21(21E,P,S)-6	101-98-00050 / 101-27-00050 (Rim)	37	SP-D20
D30(A,S,P,Q)-12/15, D31(A,S,P,Q)-15, D31(A,S,P,PL, PLL,Q)-16	113-98-22210 / 111-98-00010/ 111-98-00011 (Rim)	35	SP-D30
D30(A,S,P,PL,PLL,Q)-17, D31(E,S,P,Q)-18, D37(E,P)-1/2	113-27-31320	40	SP-D31-17
D40(A,P,PL,PLL)-1, D41(A,E,P,PL,Q,S)-3, D45(A,P,S)-1 D50(S,P)-11, D50(A,S,P,PL)-15, D50(A,F,S,P,PL)-	131-27-61710 (1PC : 3TEETH X 9PCS)	60	SG-D50
D60(A,P,PL)-6, D65(A,E,S)-6, D60(A,F,E,S,P,PL)-7, D60F-7A, D65(A,E,P,S)-8, D66S-1, D65(E,P)-1, D75A-	141-27-32410 (1PC 3TEETH X 9PCS)	75	SG-D60
D60(A,E,P)-8, D65(A,E,P)-8, D65(E,EX,P,PX)-12, D85E-2A	14X-27-15112 / 14X-27-15111 (1PC 3TEETH X 9PCS)	75	SG-D65EX-12
D75S-2/3/5, D80(A,E,P)-12, D80(A,E,P)-18, D83(E,P)-1 D85(A,E)-12, D85(A,E,P)-18, D85(A,E,P)-21, D95S	155-27-00151 / 154-27-12272/ 154-27-12273 (1SET : 3	75	SG-D80
D120A-18, D125A, D150A-1, D155A-1/2/3, D155AX-3, D155S-1, D155C	175-27-22325 / 17A-27-11630/ 175-27-22324 (1PC : 3T	120	SG-D155
D355	195-27-12467 / 195-27-12466/ 195-27-12463 (1PC : 3T		SG-D355
D275A-5		160	SG-D275-5
D375A-2/3/5		180	SG-D375A-5
D3C, D3G, D4C, D4G	9W9266 (1PC : 5TEETH X 5PCS)		SP-D3C/G
D4H(HD)	6Y5245 / 108-0946 (1PC : 5TEETH X 5PCS)		SP-D4H
955K, 955L	6K1430 (1SET : 3TEETH X 3PCS + 4TEETH X 5PCS)		SP-955K
D5, D5SA, D5B, D5LGP, 561C	7P2635 / 5S0836 (1SET : 3TEETH X 9PCS)	60	SP-D5B
D5G	197-9678(5T) + 197-9677(4T) (1SET : 5TEETH X 3PCS		SP-D5G
D5H(HD)	6Y3835(4TEETH) X 2PCS + 6Y3834(5TEETH) X 3PCS		SP-D5H
D6C, D6C-LGP, D6C-SA, D6D, D6D-SA, D6D-SR, D6D-LGP, 963, 963-LGP	6P9102/ (1PC : 5TEETH X 5PCS)/ BOLT HOLE 17.8MM	70	SP-D6C/D
D6C/D	117-1618 (1PC : 5TEETH X 5PCS)/ BOLT HOLE 20.9MM		SP-D6C/D(M20)
D6H, D6H-LGP	6Y2931 / 8E9041/ 173-0946/ 7G7212/ 258-9795 (1PC :	70	SP-D6H
D7E, D7F, D7G, D7G-SA, 571(A,F,G), D572(E,F,G)	3P1039/ (1PC : 5TEETH X 5PCS)	80	SP-D7E
D8H, D8K, 583H, 583K, 983, 983B	2P9510 (1PC : 3TEETH X 9PCS)	120	SP-D8K
D7H, D8N	9W0074 / 1146413 / 9P1898 (6Y2354;7T9773;6T3197; 314	120	SP-D8N
D9G/H	2P9448 (1PC : 3TEETH X 9PCS)		SP-D9H
D9N/R	7T1246 (1PC : 5TEETH X 5PCS)	140	SP-D9N

Brand	Model
CATERPILLAR	CAT311 - 345 (E110 - E300), D3 - D9N
KOMATSU	PC60 - PC450, D30 - D355
Doosan (Daewoo)	All kinds of Sprocket for Doosan (Daewoo)
HYUNDAI	All kinds of Sprocket for Hyundai
Volvo (Samsung)	All kinds of Sprocket for Volvo (Samsung) excavator and dozer
HITACHI	EX60 - EX450 (ZX70 - ZX450)
KOBELCO	SK60 - SK400
KATO	HD250 - HD1450
Etc	Mitsubishi, Sumitomo, etc.

The brand names such as Hyundai, Doosan, Volvo, Cat, Caterpillar, Case, John Deere, Komatsu, Hitachi, JCB, Atlac Copco, Sandvik, Tamrock, Furukawa, Toyo, Ingersoll Rand, or any others are registered trademarks of the respective original manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
