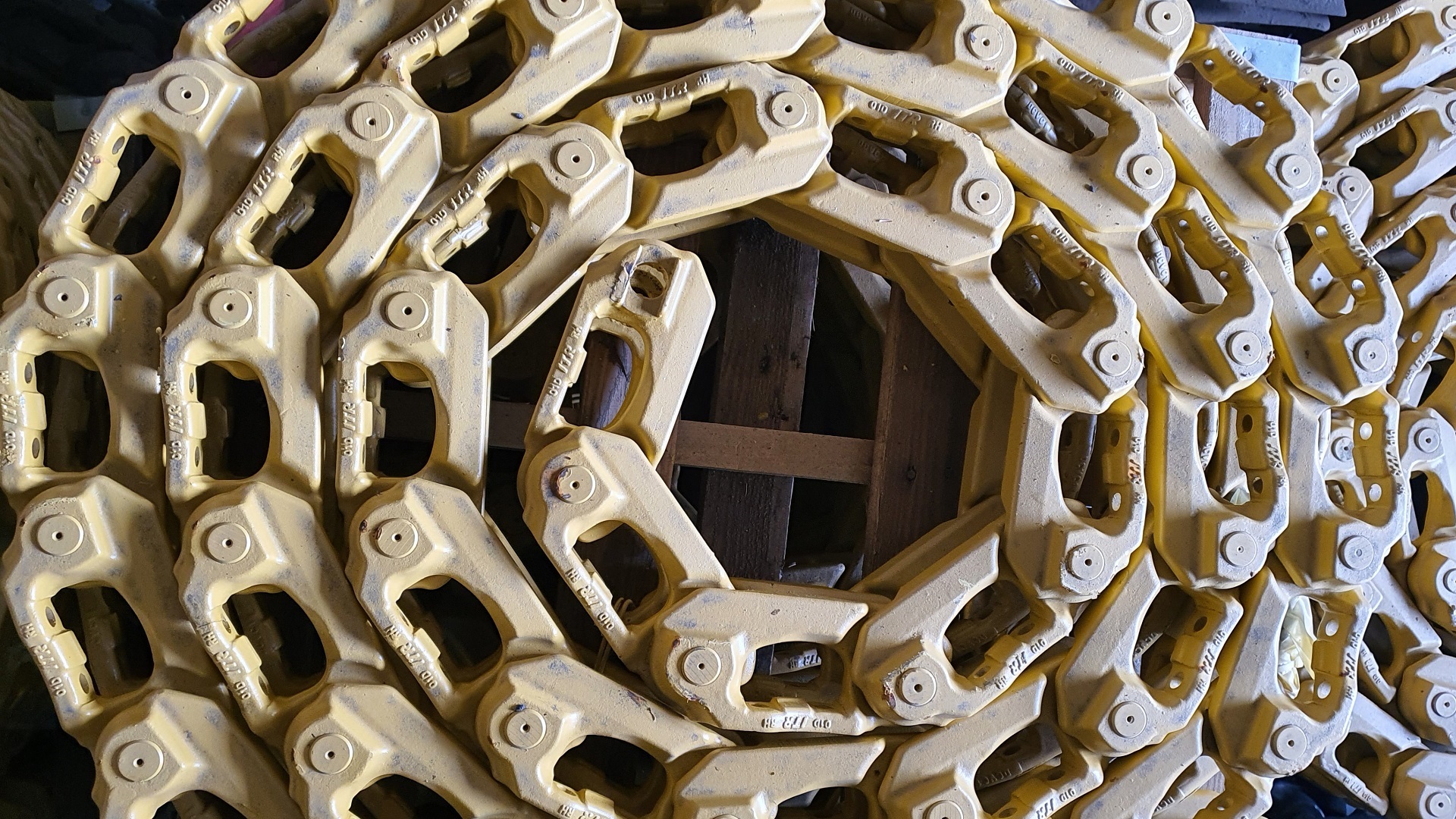

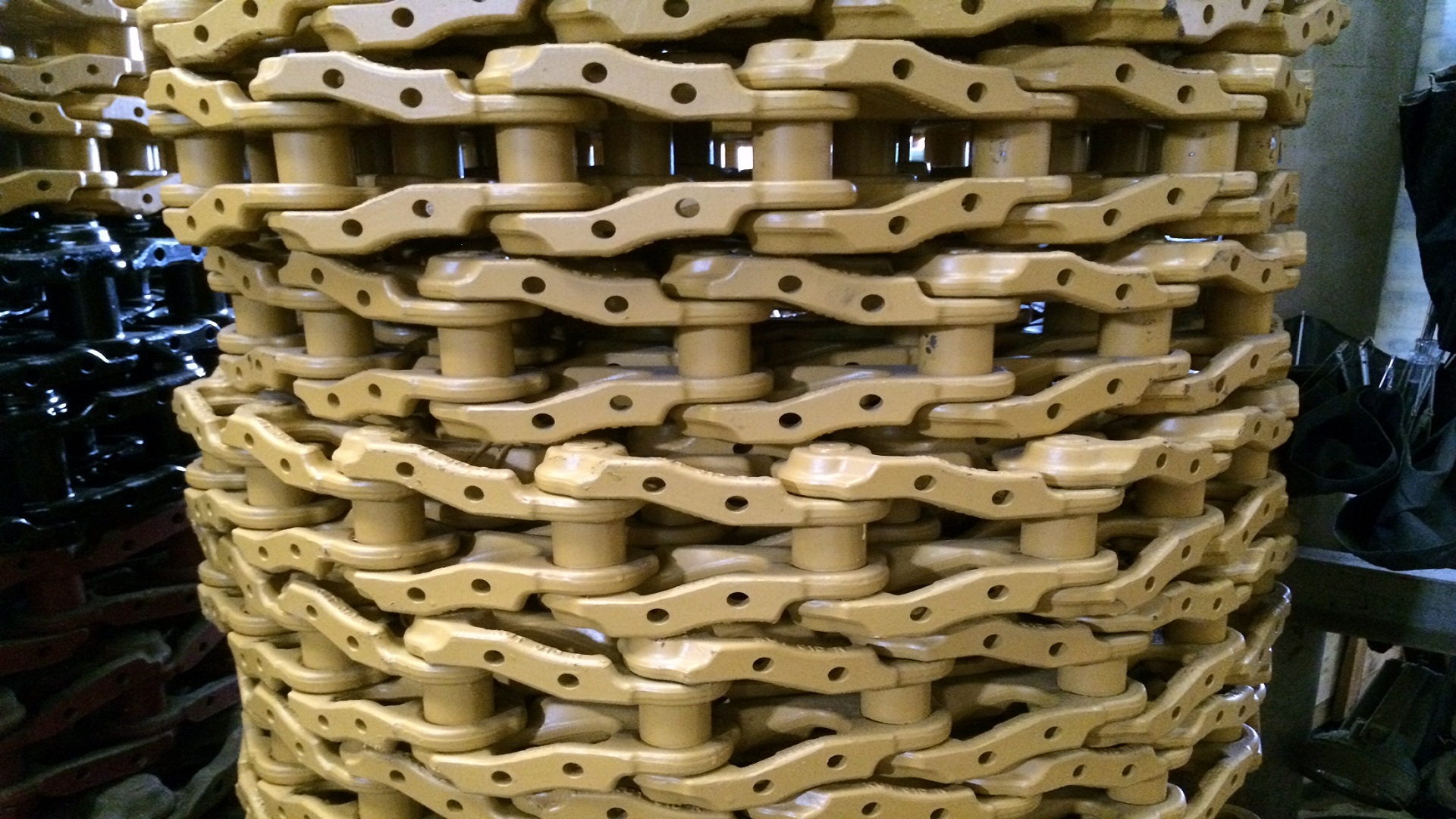

Track Link Shoe Assy
Track Link Shoe Assy for an excavator, dozer, crawler drill, rock drilling rig
pin_drop
Our Office Location
Paju-City, Seoul
Republic of Korea
phone
Call us Directly
+82 (707) 858 2730 ~ 31
Mon - Fri, 8:30am - 5:30pm
Sat, 9:00am - 12:00pm
business_center
Company Details
ERG Korea Inc.
Office Locations
Ingersoll Rand CM-470 51970366 Track Link Shoe Assy, ITR, KUT
Model |
Part No | Pitch | Type |
| F25 | FT1335 | 125 | U |
| R500 | - | 135 | U |
| MX55 (S50) | - | 135 | U |
| PC60 | - | 135 | S1 |
| BD2G | MT24 | 135 | S1 |
| FL4 | FT1351B | 140 | U |
| FL4-SPECIAL | - | 140 | U |
| MF200 | LA308 | 140 | S3 |
| CASE450C | CA744 | 152.4 | S1 |
| - | CA725 | 152.4 | LUB |
| PC60-6 | KM3041 | 154 | S1 |
| EX60 | - | 154 | S2 |
| PC120-3 | KM965 | 154 | S1 |
| D30/31 | KM239A | 154 | S3 |
| - | KM728 | 154 | SPLIT |
| - | KM727 | 154 | LUB |
| D2 | LH1A | 155.6 | U |
| D2 | AK13 | 155.6 | U |
| D2-SPECIAL | 155.6 | U | |
| D3C | CR3657 | 155.6 | S1 |
| - | CR4749 | 155.6 | SPLIT |
| - | CR4746 | 155.6 | LUB |
| JD450B/D | ID372 | 159.8 | S3 |
| - | ID595 | 159.8 | LUB |
| - | 159.8 | LUB | |
| JD450E/G | ID781 | 159.8 | S3 |
| - | ID782 | 159.8 | LUB |
| - | ID1354 | 159.8 | LUB |
| CASE550E | E1755000M00000 | 159.8 | S3 |
| CASE550E/G | CA775 | 159.8 | LUB |
| FL6 | FT209 | 160 | U |
| TD7G | IN3454 | 164.9 | S3 |
| TD7G | IN3450 | 164.9 | LUB |
| CASE1150D | CA681 | 169.62 | LUB |
| CASE1150D | CA706 | 169.62 | S3 |
| FL9 / 7C | FT1667 | 170 | U |
| CASE650/ 850D | R56723 | 171.1 | S3 |
| - | 300212A1 | 171.1 | S3 |
| CASE650G/ 850G | R56512 | 171.1 | LUB |
| - | 295202A1 | 171.1 | LUB |
| SK120 | EY612600M00000 | 171.45 | S1 |
| R1300 | - | 171.07 | U |
| D4, EX100 | CR4854 | 171.1 | S2 |
| D4D | CR2567B | 171.45 | S1 |
| D4E, EX100 | CR2849A | 171.45 | S1 |
| D4E | CR3628 | 171.45 | SPLIT |
| - | CR3519 | 171.45 | LUB |
| D4E-EWL | CR4261 | 171.45 | LUB |
| EX100M | - | 171.45 | S1 |
| R2000 | CR2006 | 171.45 | U |
| D6 | CR1998 | 171.45 | S3 |
| D4H | CR5192 | 171.45 | LUB |
| D4H-HD | CR5552 | 171.45 | LUB |
| PC120-5 | KM1262 | 175 | S1 |
| HD880 | KM967 | 175.4 | S1 |
| D50 | KM62 | 175.4 | S1 |
| D50 | KM489 | 175.4 | LUB |
| DH220 | HT17 | 175.4 | U |
| - | HT17 | 175.4 | S1 |
| D5B(CAT225) | CR2823 (CR5035) | 175.4 | S1 |
| D5B | CR3627 | 175.4 | SPLIT |
| D5B | CR3520 | 175.4 | LUB |
| D5B-EWL | CR4264 | 175.4 | LUB |
| HD11B | AC1967 | 177.8 | S2 |
| CAT225B | CR5011 | 190 | S1 |
| E200B | CR5014 | 190 | S1 |
| CAT320 | CR5350 | 190 | S1 |
| PC200-1/2 | KM1170 | 190 | S2 |
| S220-3 | KM782 | 190 | S2 |
| R210LC-3 | - | 190 | S1 |
| R210LC-7 | - | 190 | S1 |
| D5H | CR5202 | 190 | LUB |
| D5H-HD | CR5465 | 190 | LUB |
| D61PX-12 | KM2868 | 190 | LUB |
| TD15C | IN3252 | 190.5 | SPLIT |
| - | IN3251 | 190.5 | LUB |
| CAT325 | CR5489 | 202.8 | S2 |
| SK300 | CR5060 UNS | 203.2 | U |
| SK300 | CR5060 | 203.2 | S3 |
| LS4300Q | C8A0255 | 203.2 | S1 |
| S290LC-5 | - | 203.2 | U |
| D60/65 | KM951 | 203.2 | LUB |
| D60/65 | KM953 | 203.2 | S1 |
| PC300-1/2 | KM959 | 203.2 | S1 |
| PC300-3/5 | KM1617 | 203.2 | S1 |
| D85ESS-2 | KM2095 | 203.2 | S1 |
| - | KM2094 | 203.2 | LUB |
| D6C/D (CAT235) | CR3176 (CR5059) | 203.2 | S3 |
| D6C/D | CR3307 | 203.2 | SPLIT |
| - | CR3309 | 203.2 | LUB |
| D6D-EWL | CR4267 | 203.2 | LUB |
| - | 203.2 | LUB | |
| D7 | CR1769 | 203.2 | U |
| D7 | CR1769 | 203.2 | S3 |
| D6H-HD | CR5534 | 203.2 | LUB |
| RH9 | OK520 | 203.2 | U |
| CAT330 | CR5926 | 215.9 | S1 |
| D7F (CAT235) | CR2576 (CR5059) | 215.9 | S3 |
| D7F | CR3308 | 215.9 | SPLIT |
| D7G | CR3116 | 215.9 | LUB |
| CAT235/B | CR4235 | 215.9 | S3 |
| MX352 | - | 215.9 | S1 |
| MX352 | - | 215.9 | U |
| 973 (D7G-EWL) | CR4268 | 215.9 | LUB |
| - | 215.9 | LUB | |
| - | CR4700 | 215.9 | LUB |
| - | 215.9 | LUB | |
| R450LC-7 | 215.9 | S2 | |
| D80/85 | KM1103 | 215.9 | S1 |
| D85ESS-1 | KM1099 | 215.9 | LUB |
| PC400-1/3 | KM973A | 215.9 | S1 |
| EX400 | MT14 | 215.9 | S1 |
| PC400-5 (MX452) | KM4102 | 215.9 | S1 |
| D8N (NON-PPR) | CR4525 | 215.9 | LUB |
| PC300-6 | KM2233 | 216 | S1 |
| PC400-6 | KM2489 | 228.6 | S1 |
| D155A-1 | KM325 | 228.6 | S3 |
| D155A-1 | KM495B | 228.6 | SPLIT |
| D155A-1 | KM425B | 228.6 | LUB |
| D8H | CR2877 | 228.6 | S3 |
| D8H/K | CR2701 | 228.6 | SPLIT |
| D8K | CR3149 | 228.6 | LUB |
| D155A-2 | KM325 | 228.6 | S3 |
| D155A-2 | KM1267 | 228.6 | LUB |
| D9N (NON-PPR) | CR4653 | 240 | LUB |
| D355A-3 | KM596 | 260.4 | S3 |
| D355A-3 | KM649 | 260.4 | SPLIT |
| D355A-3 | KM426 | 260.4 | LUB |
| D9G | CR2672 | 260.4 | SPLIT |
| D9H | CR3153 | 260.4 | LUB |
| JD 350D | ID627 | 146 | S3 |
| CASE 350 | CA307 | 149.17 | S3 |
| CASE 450 | CA274 | 149.17 | S3 |
| CASE 880 | CA695 | 158.8 | S3 |
| CASE1450B | CA574 | 202.9 | LUB |
| TD7C/E | IN2755 | 152.15 | S3 |
| TD8, TD9 | IN2557 | 164.8 | S3 |
| TD15E | IN3421 | 202.8 | LUB |
| TD20E | IN3253 | 215.9 | LUB |
| D6H | CR4810 | 202.9 | LUB |
| D7H | CR5069 | 215.9 | LUB |
| D7H-HD | CR5574 | 215.9 | LUB |
| D10N | CR5038 | 260.4 | LUB |
| CAT 345B | CR6594 | 215.9 | S1 |
| CAT 345B | CR6594 | 215.9 | S1 |
| Brand | Products range |
| Caterpillar | CAT311 - 345 (E110 - E300), D3 - D11N (SWAMP : D6H/R) |
| Komatsu | PC60 - PC450, D30 - D155 (SWAMP : D65) |
| Doosan (Daewoo) | All kinds of Track Shoe for Doosan (Daewoo) |
| Hyundai | All kinds of Track Shoe for Hyundai |
| Volvo (Samsung) | All kinds of Track Shoe for Volvo (Samsung) excavator and dozer |
| Hitachi | EX60 - EX450 (ZX70 - ZX450) |
| Kobelco | SK60 - SK330 |
| Kato | HD250 - HD1500 |
| Etc | Mitsubishi, Sumitomo, etc. |
The brand names such as Hyundai, Doosan, Volvo, Cat, Caterpillar, Case, John Deere, Komatsu, Hitachi, JCB, Atlac Copco, Sandvik, Tamrock, Furukawa, Toyo, Ingersoll Rand, or any others are registered trademarks of the respective original manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
