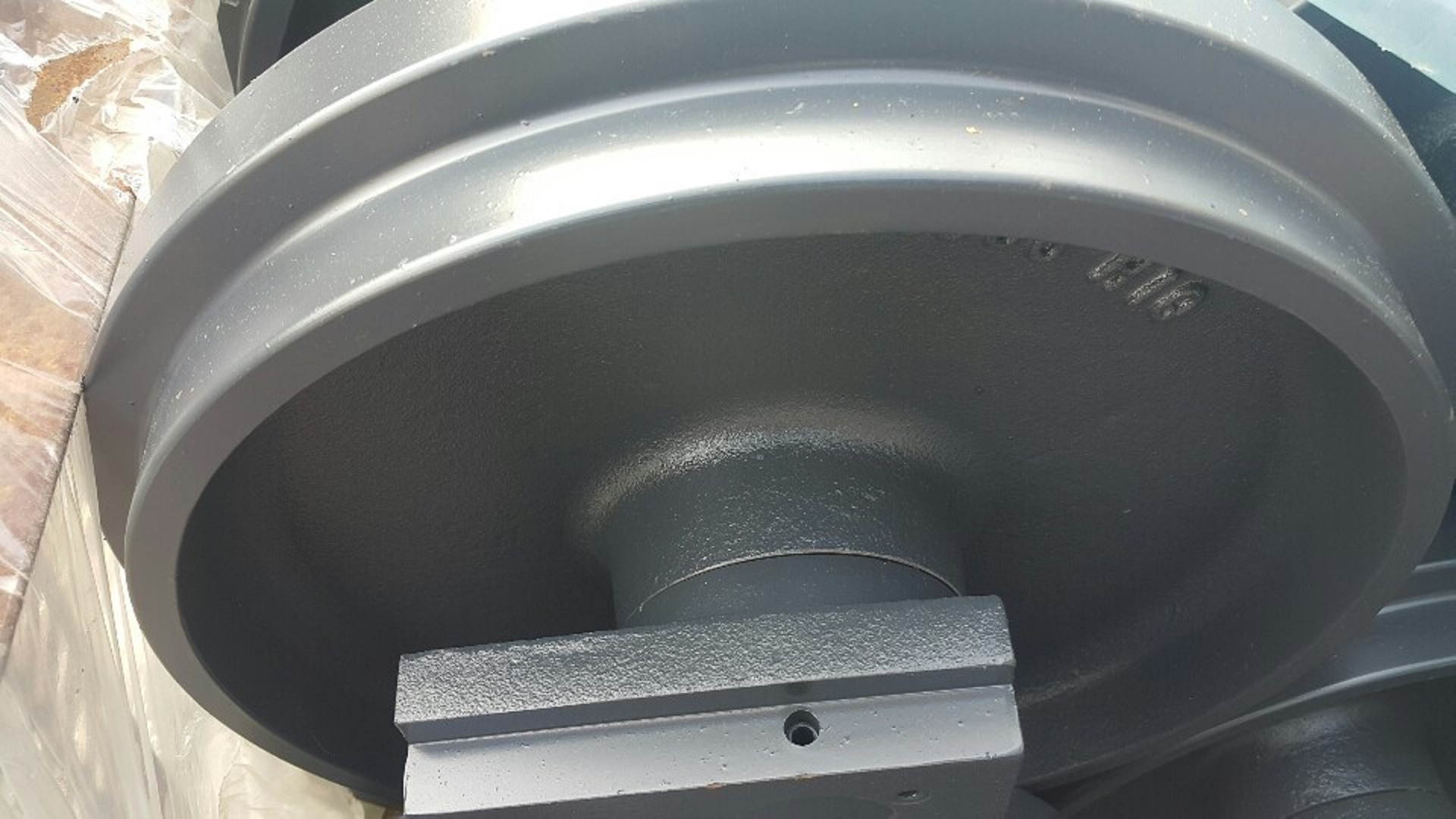

Idler - Front Idler

Model	Part No	Weight (KG)
S50, S55-5, S028	2270-1040S / 2270-1040C	45
S55-5 SUPER GOLD, DX55	207-00052B	45
S130, S130-2~5, S140-5	2270-1052A / 2270-1052 / UX070E8E	100
DX140LC
S170, S170-3	2270-4002A	130
S150, S170-5	270-00016
DX180LC	K1011588B
S220, S220-3/5, DH220LC-V	WITH YOUKE : 2270-1108/ 2270-1108A/ 2270-1108C/ W	150
DX220LC, DX225LC, DX225NLC	270-00063A
S255-5	270-00015B
DX255LC	K1011713A
S280, S280-3, S290-5, S300-5, S320, S330, S330-3/5, S340-5	WITH YOKE : 270-00037A/ 270-00037B/ 2270-1084/ 227	180
DX300LC, DX340LC	270-00049A / 270-00049B/ 270-00049C/
S360-3/5, S400, S400-3/5, DH370LC-7	2270-9009 / 2270-9009B/ 2270-9009C/ 200102-00005/ U	220
DX420LC	K1004481B
S450, S450-3/5, S470-5, S500-5	2270-9405A / 2270-9405E/ 2270-9405G/ 2270-9405H/ 2	220
DX480LC, DX520LC	270-00059C
R450(DOMESTIC)	20T-30-00110	30
R55-3, R55-7, R500, R550-3, R555MVP, R555M, R555-7	81M5-53000	40
R130-3, R1300-3	81E6-2004	100
R140-7, R1400-7	81N4-13010	120
R200LC,HX80, R2000LC, R2000LC-2	E181-2004	140
R210-3, R210ECONO, R180-3, R160-3, R250-3, R1800-3, R2200-3, R2500-3	81EM-14010 / 81EL-20040/ 81EM-14030/ 81EM-14230	150
R210-7, R160-7, R180-7, R250-7, R2200-7	81N6-13010 / 81N8-13011GG/ UX102E3E-G	150
R290LC, R290-3, R320LC, R320-3, R360-3/7, R2800K, R2800KLC, R3000/3200LC, R3300-3, R3600-/7, HX100,	81E8-2004(420MM) / 81E9-20040(400MM)/ 81EH-10050(41	210
R290-7, R320-7, R2900-7, R3000-7	81N8-13010 / UX102E3E-G/ 81N8-13011/ 81N8-13011GG	250
R420/R450LC, R450-3, R450-7, R500-7, R4200/R4500LC, R4500-3/7 R4700-7, R5000-7	81E7-01030 / 81E7-0024/ UX102E2E-G/ 81E7-01031/ 81E	280
SE25,MX3, MX3A	172124-95025 / 8250-00280	29
MX55, MX55A, EC55	1181-00450 / 14532404	46
MX132, MX6LC, SE130LC,SE130LC-2, MX132LCM	1081-04150 / 1081-04130/ 1081-02010	100
MX135LS, SE130LC-2/3, EC140	1081-04050 / 1081-01060/ 14532329	100
SE210,MX8, MX8-2	1080-00980 / 1030-60050	150
SE210-2, MX222	1081-03790 / 1081-00121	150
SE130LCM-3, SE210-3, SE240-3, MX225, MX255, EC210, EC240, EC160, EC180	1181-00030 / 14542007/ 14532384/ 14533156/ 14618207	150
SE280, SE280-2,MX10, MX10-2, SE350, MX14-2	1081-00510 / 1030-10020/ 1081-00640/ 1081-00630	190
MX292, MX352, EC360, MX14	1081-03910 / 1081-03911/ 14542009/ 14510974/ 145308	190
EC290, MX295	1181-00721 / 14542008/ 14532537/ 14520766/ 14510972	190
EC460, MX452, SE450	1081-02222 / 14542010/ 14533152 / 14510975	230
SD4P	103-30-00020	64
SD6P	3081-01970 / 3081-01970C/ R52404	94
SD15P	3030-00770	240
PC60-1~3, PC60L-1~3	201-30-00130	62
PC60-5/6	201-30-00012	62
PC60-7	201-30-00260 / 201-32-00300	62
PC100-1/2	202-30-00016	80
PC100-3, PC120-3	203-30-00100	80
PC100-5/6, PC120-5/6	203-30-00133 / 203-30-00210	80
PC200-1, PC220-1	205-30-00015	130
PC200-3, PC180-3, PC150-3/5, PC220-3, PC240-3/5	205-30-00182	130
PC200-5/6, PC210-6, PC220-5/6	20Y-30-00030 / 20Y-30-08010, 20Y-30-08040	130
PC200-7/8, PC220LC-7/8	20Y-30-00321 / 20Y-30-00322 / 20Y-30-00440	130
PC300-1/2/3	207-30-00013	180
PC300-3/5~8, PC350-6	207-30-00160 / 207-30-00161	180
PC400-1	208-30-00013	220
PC400-3	208-30-00070 / 208-30-00071	220
PC400-5~8, PC450-6	208-30-00200 / 208-30-00201/ 208-30-00221/ 208-30-0	230
D20	103-30-00110 / 103-30-00120
D30, D31, D37(E,P)-1/2	113-30-00102	100
D60(A,P,PL,E,S)-6, D65(A,C,E,P,S)-6, D60(A,P,PL,F,S)-7, D60(E,F)-8, D60F-7A, D65(A,P,S)-7, D65(A,E,P	141-30-00538 / 144-30-00038	190
D65EX-12	14X-30-00112 / 14X-30-00113/ 14X-30-00114/ 14X-30-0	192
D75S-2, D80A-12, D85A-12, D80E-12, D85E-12, D80P-12		280
D75S-3/5, D80(A,E,F,P)-18, D85(A,E,P)-18/21, D95S-1/2	154-30-00293 / 158-30-00100/ 154-30-00291/ 154-30-0	320
D135A-1/2, D150A-1, D155A-1/2, D155C	175-30-00571 / 175-30-00572 / 175-30-00573/ 175-30-0	420
EX30		30.3
EX40		45.4
EX60, EX60-1	9125766	60
EX60-2/3	9097575 / 9097574	60
EX60-5, EX80-5, ZX70, ZX75	9154166 / 9154168	60
EX100-1~3, EX120-1~5	9068144 / 9165902 / 9092973/ 9143388/ 9068144	93
EX100-5	9165602 / 9134216	93
EX100M / EX150	9165905	106
EX100M-5	9147610	150
EX200,EX200-1~3, EX220-1~3, EX210	9066393 / 9143400/ / 9089636/ 9089384 (OUTER 546MM)	130
EX200-5, EX220-5, EX230-5 (ZX200)	9145269 (OUTER 537MM)
EX300-1~3, EX270-1/2	9115208 / 9070826/ 9151028	180
EX300-5, EX330-5, ZX270, ZX330, ZX350	9154690 / 9154691/	180
ZX330-3	9245615 / 9245616
EX400-1~5, EX450-5, ZX370, ZX370MTH	9099137 / 9074011/ 9115238/ 9134295/ 9165848	210
FH130
FH150	71400907
FH200	71400911
FH220	1930838
FH300	19302768
307	6I6488	55
E110B, E120B, 311B, 312B, 314C	4I7337	90
E180, EL180	104-8170	120
E200B, EL200B, 315, 315B/L, 317, 317N/BL/BLN, 318B/BL/BN, 320, 320B/BL/BN/C/L	113-2907 / 102-8151/ (248-7143 = 286-9830 = 239-434	130
322B	115-6337
325, 325N, 325L, 325LN	102-8155	145
330	102-8152 / 136-2422 / 6Y5323/ 115-6344/ 115-3698	220
345B	115-6366 / 248-7151	240
350	135-8903 / 135-8904	350
D3B/C/G, D4B/C/G	9N4173	110
D4D/E, 941	1M8867 & BRACKET	135
D4D/E, 941	3K2866 & BRACKET	135
D4H	160-9753 (475MM)	81
D4H	6T2614 / 190-1551 (500MM)	90
D5B	7T3501 & BRACKET	164
D5C/G	9U9065	175
D5H	161-7549 / 8E4407	112
D6C/D	7T4562 & BRACKET/ 5M7739	170
D6H/R	151-4587 / 202-4296/ 7T6996 (545MM)	147
D6H/R	149-2493 / 202-4304/ 6T3216 (570MM)	159
D7F/G, 977K, 977L	7T4509 & BRACKET	265
D7H/R	6Y2031 / 135-9896/ 192-0224 (585MM)	240
D7H/R	9W7647 / 192-0216/ 161-5792 / 159-2086/ 131-3931 (62	260
D8H/K	9S7221 & BRACKET	340
D8N/R/T	111-1730 / 6Y0557 (698MM)	340
D8N/R/T	111-1729 / 6Y0554 (620MM)	296
D9G/H	5S1532 & BRACKET	380
D9L	9W6039 / 9W0622	480
D9N/R/T	125-4655 / 7T2769/ 9W9991	432
D10N/R/T	125-3537 / 9W9734/ 245-9947	620
D11N/R/T	156-0313 / 9W9650/ 187-1484	910
SK60 / SK70SR	24100N6296F1 / YT52D00002F1	76
SK07		130
SK07-N2, K907-3	24100N4064F1	130
SK100/SK120	24100N6504F1 / LP52D00003F2	105
SK200	24100N5948F2 / 24100N5948F4	130
SK09-N2	24100J6379F1	148
SK220, SK250	24100J11697F1	160
SK300, SK310-3	24100N3099F4/5, LC52DU0000F1	200
SK400		280
LS2650FJ2, S260FJ2	KNA0375	81
SH100 / SH120/ LS2650Q	KNA0540	86
JS130		104
JS200		116
SH200 / LS2800Q	KRA1198	120
LS2800FJ2 / S280FJ2 / LS2650C2 / LS2650FJ2 / S260FJ2	KNA0946	80
SH300 / LS4300Q	C8A0173	170
SH430 / LS4300FJ2 / LS4300C2	KSA0783	170
HD250		60
HD400		90
HD450		90
HD700		130
HD820		130
HD1023		130
HD1250		170
KH130	KT6213	46
HR3.7		32
TD09		9

Brand	Products range
Caterpillar	CAT311 - 345 (E110 - E300), D3 - D11N
Komatsu	PC60 - PC450, D30 - D155
Doosan (Daewoo)	All kinds of Idler for Doosan (Daewoo)
Hyundai	All kinds of Idler for Hyundai
Volvo (Samsung)	All kinds of Idler for Volvo (Samsung) excavator and dozer
Hitachi	EX60 - EX450 (ZX70 - ZX450)
Kobelco	SK60 - SK400
Kato	HD250 - HD1250
Etc	Mitsubishi, Sumitomo, etc.

The brand names such as Hyundai, Doosan, Volvo, Cat, Caterpillar, Case, John Deere, Komatsu, Hitachi, JCB, Atlac Copco, Sandvik, Tamrock, Furukawa, Toyo, Ingersoll Rand, or any others are registered trademarks of the respective original manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
